Enriched mixed elasticity families

solve_elasticity_mixed supports the triangular BDM, BDM-plus and BDM-double-plus families in Table 1 of the weak-symmetry MHM paper (2021). The parameters distinguish the normal polynomial degree on each fine edge from the degree of its interior bubbles:

Parameters	Local stress row	Displacement and independent rotation
stress_degree=k, enrichment=0	BDM\(_k\)	\(P_{k-1}^2\) and \(P_{k-1}\)
stress_degree=k, enrichment=1	BDM\(_k\) plus all zero-normal \(P_{k+1}^2\) bubbles	\(P_k^2\) and \(P_k\)
stress_degree=k, enrichment=2	BDM\(_k\) plus all zero-normal \(P_{k+2}^2\) bubbles	\(P_{k+1}^2\) and \(P_{k+1}\)

The normal degree remains \(k\) when interiors are enriched. The implementation constructs the complete moment-dual BDM\(_{k+n}\) basis and retains its normal moments through degree \(k\) and all interior moments. This preserves the zero-normal polynomial subspace and \(\operatorname{div}\Sigma_h=P_{k+n-1}^2\). Piola transformations and the parity of oriented Legendre moments preserve normal continuity across local fine faces.

The MHM local displacement space must contain the three rigid motions. Consequently \(k+n\geq2\) is required: unenriched BDM1/P0/P0 is not an admissible local choice in this implementation. Stability of a global AFW pair alone does not establish this local MHM requirement. The default BDM2/P1/P1 solution and its coefficient conventions are preserved.

The example helpers below are repository sources, supplied separately from the installed library. Open the corresponding notebook to acquire its verified companion, as described in the notebook guide.

from pymhm import TriangleMesh
from examples.formulations.application import weak_stress_elasticity as solve_elasticity_mixed

solution = solve_elasticity_mixed(
    TriangleMesh.unit_square(2),
    stress_degree=2,
    enrichment=1,
    quadrature_order=6,
    source=(1.0, 0.0),
)

The default interior macro traction is P1; exterior tractions retain the full fine-edge degree \(k\). An explicit skeleton can enrich interior macro tractions independently, up to \(k\), with aligned segments. The theoretical construction in section 6.1.2 uses macro degree \(k_{sk}\), local normal degree \(k_{in}=k_{sk}+1\), and optional additional interior bubbles. Thus the local normal degree is not the macroface degree.

The mixed-elasticity conventions apply to every family: negative Cauchy traction, independent weak rotation, three physical rigid-motion constraints, heterogeneous Lamé callbacks, the finite-modulus hydrostatic identity, and the exact infinite-lambda gauge. The stress remains a full tensor; no pointwise symmetrization changes the computed field.

Independent verification

CI checks physical normal-moment duality on sheared triangles, elimination of higher normal modes, the full divergence range, and agreement with the original BDM2 basis. Affine displacement and stress are reproduced by all families in the suite. A quadratic solenoidal displacement with affine Cauchy stress is exact for BDM1-double-plus, BDM2-plus and BDM3 at finite, large and infinite lambda. Pure traction checks retain the prescribed rigid moments and force/moment balance. Fine force moments and weak-symmetry moments are reported separately.

Four native integration tests assemble the complete compliance, divergence, rotation and load operator independently in DOLFINx/UFL. Physical basis evaluation determines the change of coordinates from Basix to the moment bases. The tests include variable Lamé coefficients and distinguish the enriched local spaces by restricting only the appropriate higher normal modes.

The bases accept arbitrary positive integer degree and nonnegative enrichment; current normal-moment checks cover complete degrees through four, and the native mixed-operator checks cover BDM1-plus, BDM1-double-plus, BDM2-plus and BDM3. Higher requested degrees still encounter the numerical conditioning and rank checks of the discrete system. These checks are not a uniform high-degree stability theorem.

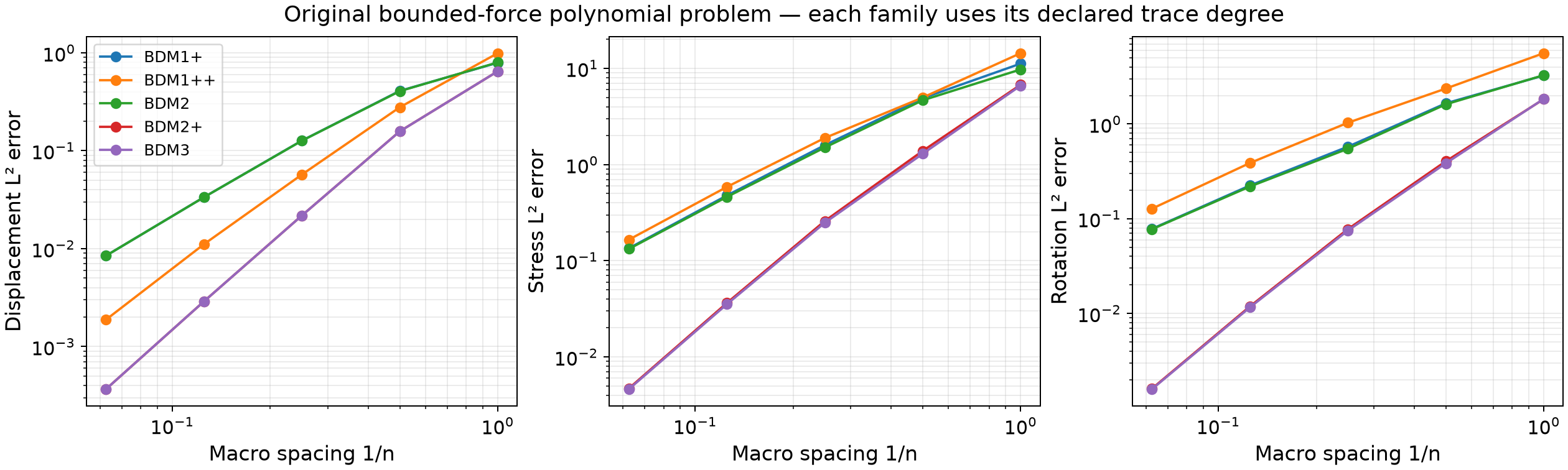

Five-level manufactured convergence and locking studies

examples/solve_elasticity_families.py uses the bounded-force polynomial family in examples/elasticity_data.py. Each of five families is solved on grids with \(n=1,2,4,8,16\), one fine triangle per macrotriangle. The macro trace is \(P_{\min(k,k+n_{enrichment}-1)}\), while exterior traces have degree \(k\). The records state these degrees; comparing families therefore compares their complete declared spaces, rather than isolating just one source of enrichment.

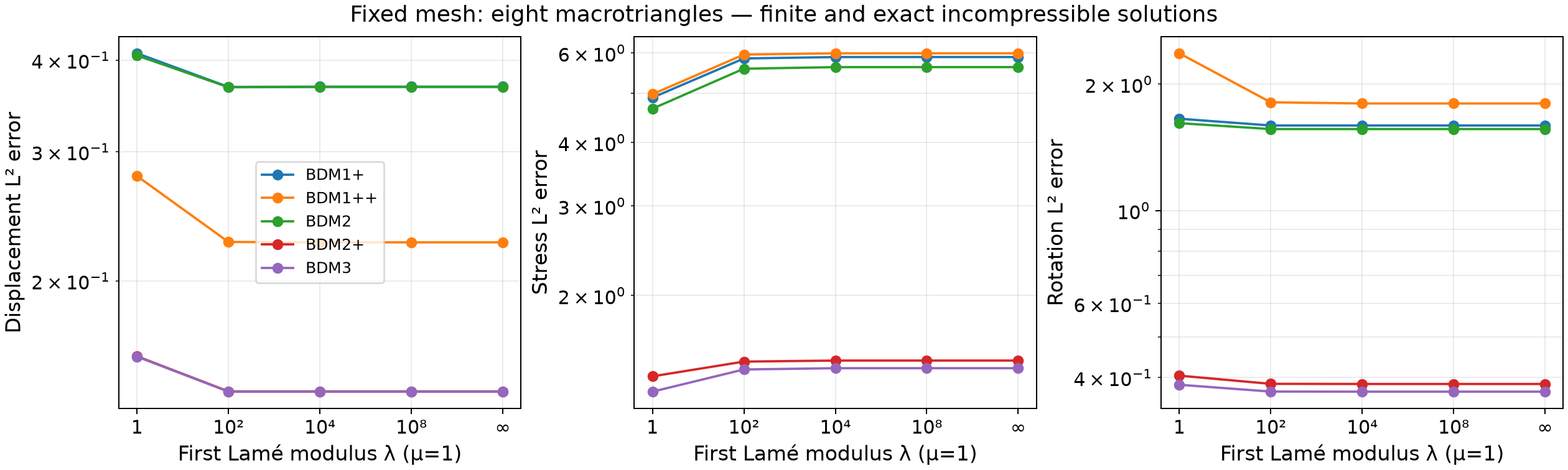

A separate fixed-mesh sweep uses \(\lambda=1,10^2,10^4,10^8,\infty\), with \(\mu=1\), eight macrotriangles and nonzero limiting pressure. The exact displacement, pressure, stress and load remain consistent and bounded through the incompressible limit. The finite errors quantify approximation on this deliberately small fixed space; the sweep is evidence against locking in these cases, not a proof for every heterogeneous contrast or arbitrary skeletal space.

pixi run --locked -e test-core python -m examples.solve_elasticity_families --degree 2 --enrichment 1
pixi run --locked -e notebooks python -m examples.plot_elasticity_families

Oscillatory coefficients from the 2021 paper

examples/solve_elasticity_literature.py also acquires the analytical data of section 6.1.2/Table 3, including the gradient of the oscillatory Young modulus in the force. It uses Poisson ratio 0.3 and the exact displacement trace on the boundary; that trace is nonzero despite the paper's conflicting textual boundary description. The formulas are given on the mixed-elasticity page.

The declared mesh has 32 diagonal macrotriangles, nominal \(H=1/4\), with \(s=1,2,4,8\) macroface segments and local refinement \(r=2s\). Both \(k_{sk}=1,2\) and BDM/BDM-plus local families are recorded. This follows the printed relation \(h_{in}=h_{sk}/2\) relative to square-grid spacing; a diagonal macrotriangle's geometric diameter is \(\sqrt2/4\). The article does not completely specify the historical connectivity and size convention. Its first displayed divergence error agrees with a different refinement index in this mesh. Some printed rotation entries also disagree with the rates printed alongside them. Accordingly these are comparisons of the stated problem and nominal spaces, not a claim of reproducing Table 3.

Independent same-case comparison

DOLFINx/UFL independently assembles this variable-modulus case in the same fine spaces, with a Basix normal-moment restriction matching each segmented macro traction. The assembly and physical-norm conventions apply to every branch, including the enriched interior stress modes. The maximum relative difference below is taken across full stress, displacement and rotation and both norm quadrature orders.

Macro degree	Local stress family	Independently compared segments s	Maximum relative field difference	Final stress / displacement / rotation rates
1	BDM2	1, 2, 4, 8	1.704e-12	2.26 / 2.11 / 2.40
1	BDM2+	1, 2, 4, 8	1.970e-12	2.28 / 3.38 / 2.48
2	BDM3	1, 2, 4, 8	4.941e-12	3.24 / 3.95 / 3.27
2	BDM3+	1, 2, 4, 8	4.425e-11	3.24 / 4.19 / 3.27

Final rates use the recorded change from \(s=4\) to \(s=8\) on the fixed 32-macrotriangle mesh. For these smooth fields and uniformly positive material, the paper's Theorem 5.2 gives stress/rotation terms of order \(k_{sk}+1\) in the skeletal resolution, together with the local approximation terms. The measured second- and third-order trends are consistent with those hypotheses. Additional interior enrichment improves the displacement rates in this study; the table reports measured rates rather than assigning the stress estimate to displacement. The numerical record preserves the complete same-case norms and executed discretizations. This agreement does not resolve the historical mesh and table conventions described above.

pixi run --locked -e notebooks python -m examples.solve_elasticity_literature --trace-degree 1 --enrichment 1

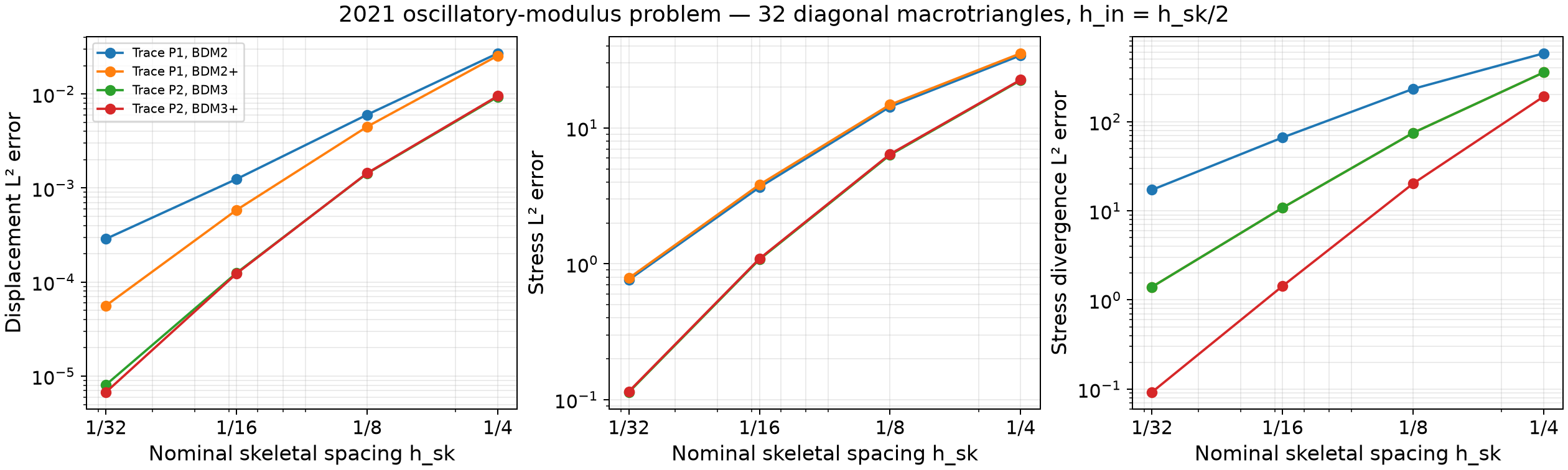

The four-level acquisitions use assembly quadrature order 12 and error quadrature order 10. At the last nominal level, \(s=8\), \(r=16\):

Macro trace	Local stress family	Displacement L² error	Stress L² error	Stress-divergence L² error
P1	BDM2	2.88143e−4	0.762322	17.1668
P1	BDM2-plus	5.62108e−5	0.784869	1.40033
P2	BDM3	8.09568e−6	0.113738	1.40033
P2	BDM3-plus	6.75782e−6	0.115085	0.0925549

The maximum algebraic residual across these acquisitions is below 1.5e−15. The separate force, moment, fine-force and weak-symmetry diagnostics remain in each JSON record; they do not replace the approximation errors above.

References

• Philippe R. B. Devloo, Agnaldo M. Farias, Sônia M. Gomes, Weslley Pereira, Antonio J. B. dos Santos, and Frédéric Valentin (2021). New H(div)-conforming multiscale hybrid-mixed methods for the elasticity problem on polygonal meshes, ESAIM: M2AN 55, 1005–1037. DOI: 10.1051/m2an/2021013.
