Unfitted MHM: independent skeletal partitions

Open the step-by-step notebook · Download notebook

An unfitted trace partition can cut across the local boundary elements. It is declared independently rather than forcing its breaks to coincide with the fine mesh. We first show this geometric capability on smooth identity diffusion with an exact pressure, then distinguish its qualified convergence study from material-interface cases.

The flux-approximation theorem and trace construction follow Chaumont-Frelet, Paredes and Valentin (2026). This smooth example is not a reproduction of their heterogeneous applications.

import numpy as np
import matplotlib.pyplot as plt
import ufl
from pymhm import (
    Equation, FaceSpace, LocalContext, MeshHierarchy, SkeletonSpace, TriangleMesh,
    assemble, bind_interface, bind_problem, columns, solve,
)
from threadpoolctl import threadpool_limits


def exact_pressure(points: np.ndarray) -> np.ndarray:
    """Analytical pressure; it vanishes on every exterior edge."""
    return np.sin(2 * np.pi * points[:, 0]) * np.sin(2 * np.pi * points[:, 1])


def exact_gradient(points: np.ndarray) -> np.ndarray:
    """Independently differentiated physical pressure gradient."""
    x, y = 2 * np.pi * points.T
    return 2 * np.pi * np.column_stack((np.cos(x) * np.sin(y), np.sin(x) * np.cos(y)))


def source(points: np.ndarray) -> np.ndarray:
    """Negative Laplacian computed independently of the discrete operator."""
    return 8 * np.pi**2 * exact_pressure(points)
from pymhm.fem.scalar.triangle import scalar_operators, trace_coupling
from pymhm.postprocessing.nodal import nodal_field

1. Define macro, local and interface spaces

The hierarchy owns mesh association. The interface binding owns geometric incidence and numbering; variational signs are declared separately.

macro = TriangleMesh.unit_square(2)
local_meshes = tuple(macro.submesh(cell, 4) for cell in range(len(macro.cells)))
hierarchy = MeshHierarchy(macro, local_meshes)
skeleton = SkeletonSpace(macro, tuple(FaceSpace.uniform(1, subdivisions=3) for _ in macro.faces))
interface = bind_interface(skeleton, convention="normal")

2. Write the local primal form

\[ (\nabla p_T,\nabla v)_T+\langle\lambda_T,v\rangle_{\partial T}=(f,v)_T. \]

Each macroedge has three P1 trace segments; each local edge has four fine subdivisions with P3 volume pressure. Their partitions differ. The portable Basix owner scalar_operators integrates the declared volume form; trace_coupling integrates on the common intersections and applies canonical incidence. Its global coordinates are declared explicitly. The UFL volume integrand would be ufl.inner(ufl.grad(p), ufl.grad(v)) * dx; native trace_pairings currently requires boundary facets aligned with trace breaks, so it is not used for this independent partition. The constant kernel and physical volume moment remain explicit.

def local_equations(local: LocalContext):
    """Declare volume diffusion, physical mean and signed scalar trace forms."""
    fine = local.mesh
    A, mass, force = scalar_operators(fine, 3, diffusion=1.0, source=source, order=12)
    B = trace_coupling(macro, local.cell, fine, skeleton, 3)
    constant = np.ones((A.shape[0], 1))
    field = nodal_field("pressure", fine, 3)
    local.field("pressure", evaluator=field.evaluator,
                gradient_evaluator=field.gradient_evaluator, basis_id=field.basis_id)
    return local.equations(a=A, L=force, b=B, c=-B.T,
                          kernel=constant, moments=mass @ constant,
                          coordinates="global", metadata=(fine,))

3. State global pressure continuity

\[ -\sum_T\langle p_T,\mu_T\rangle_{\partial T}=-\langle p_D,\mu\rangle_{\partial\Omega}. \]

Retain one physical pressure mean per macrocell. A material-interface study additionally specifies region markers, each region's coefficient, physical continuity and certified bounds. A trace partition by itself does not supply those data.

def global_equation(global_context):
    """Supply the weak Dirichlet moments in the bound interface layout."""
    boundary, fixed = global_context.boundary_data(0.0, order=8)
    assert not fixed
    return Equation(0, global_context.trace_load(-boundary))


problem = bind_problem(hierarchy, interface, local_equations,
                       global_equation=global_equation, retained=1)

4. Assemble and solve

Assembly solves the independent local equations and sums their interface contributions. Solving reconstructs named local fields in their executed coefficient bases.

with threadpool_limits(1):
    system = assemble(problem)
    coefficients = solve(system)
pressure_fields = coefficients.field("pressure")

5. Integrate physical errors

Pressure and its broken gradient are integrated separately with positive order-12 quadrature. No algebraic residual is used as a substitute for these errors.

from pymhm.fem.scalar.operators import triangle_quadrature
bary, weights = triangle_quadrature(12)
pressure_error, gradient_error = 0.0, 0.0
for fine, field in zip(local_meshes, pressure_fields, strict=True):
    points = np.einsum("qi,tia->tqa", bary, fine.points[fine.cells])
    flat = points.reshape(-1, 2)
    ep = (field.evaluate(flat) - exact_pressure(flat)).reshape(points.shape[:2])
    eg = (field.gradient(flat) - exact_gradient(flat)).reshape(*points.shape[:2], 2)
    pressure_error += np.einsum("t,q,tq->", fine.areas, weights, ep**2)
    gradient_error += np.einsum("t,q,tq->", fine.areas, weights, np.sum(eg**2, axis=-1))
print({"original_equation_residual": coefficients.raw_residual,
       "pressure_L2": float(np.sqrt(pressure_error)),
       "broken_gradient_L2": float(np.sqrt(gradient_error))})
assert coefficients.raw_residual < 1e-10

{'original_equation_residual': 3.5449406664270396e-16, 'pressure_L2': 0.0015231982881657494, 'broken_gradient_L2': 0.0764305891124548}

6. Plot analytical, numerical and error fields

Independent local panels retain one-sided values. Every panel shows the actual macro partition.

fig, axes = plt.subplots(2, 2, figsize=(8.5, 7), layout="constrained")
all_exact, all_values, panels = [], [], []
for fine, field in zip(local_meshes, pressure_fields, strict=True):
    points = fine.points[fine.cells].mean(axis=1)
    exact, values = exact_pressure(points), field.evaluate(points)
    flux_magnitude = np.linalg.norm(-field.gradient(points), axis=1)
    panels.append((fine, exact, values, flux_magnitude))
    all_exact.extend(exact)
    all_values.extend(values)
common = max(np.max(np.abs(all_exact)), np.max(np.abs(all_values)))
error_max = max(np.max(abs(values - exact)) for _, exact, values, _ in panels)
flux_max = max(np.max(flux) for _, _, _, flux in panels)
titles = ("Analytical pressure", "Hybrid pressure", "Pressure error", "Hybrid Darcy flux magnitude")
for index, (ax, title) in enumerate(zip(axes.flat, titles, strict=True)):
    for fine, exact, values, flux in panels:
        value = (exact, values, values - exact, flux)[index]
        limit = (common, common, error_max, flux_max)[index]
        artist = ax.tripcolor(*fine.points.T, fine.cells, facecolors=value,
                             vmin=0.0 if index == 3 else -limit,
                             vmax=limit, cmap="viridis" if index == 3 else "coolwarm")
    for edge in macro.faces:
        ax.plot(*macro.points[edge].T, color="black", lw=0.5, alpha=0.7)
    ax.set(title=title, xlabel="x", ylabel="y", aspect="equal")
    fig.colorbar(artist, ax=ax)
plt.show()

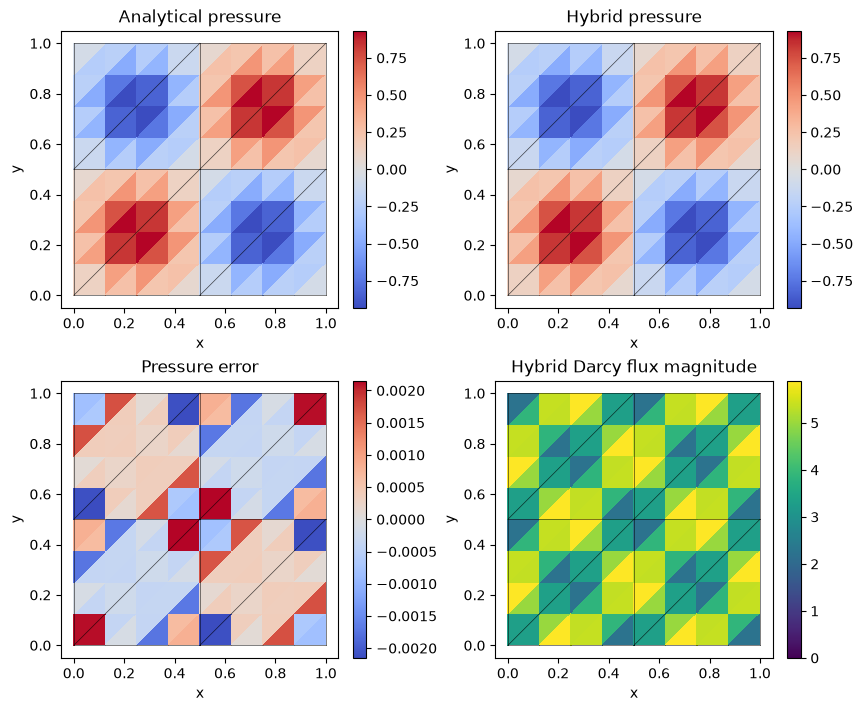

Figure 1 — unfitted variational workflow

Independently refined classical primal Galerkin baseline

The classical baseline uses one globally conforming P2 space on independent 16×16, 32×32 and 64×64 triangular grids, with the same physical coefficient, source and boundary values:

\[ (\nabla p_h^{\mathrm{CG}},\nabla v_h)=(f,v_h),\qquad p_h^{\mathrm{CG}}\big\vert_{\partial\Omega}=p_D. \]

The shared volume operator integrates this already stated form. The explicit essential lifting \(A_{ff}p_f=f_f-A_{fb}p_D\) selects its classical boundary values. Check this reference's own errors before comparing fields. The multiscale solve above retains its simpler macro mesh and separate local spaces; it does not use this refined global grid. An exactly representable polynomial has roundoff-level classical errors on all three grids.

from threadpoolctl import threadpool_limits
from pymhm.fem.scalar.triangle import scalar_operators, nodal_space, tabulate
from pymhm.fem.scalar.operators import triangle_quadrature
from pymhm.linalg.linear import solve_linear

classical_rows = []
bary, weights = triangle_quadrature(12)
for resolution in (16, 32, 64):
    reference_mesh = TriangleMesh.unit_square(resolution)
    A, _, forcing = scalar_operators(reference_mesh, 2, diffusion=1.0, source=source, order=12)
    dofs, nodes = nodal_space(reference_mesh, 2)
    boundary = np.flatnonzero(np.any(np.isclose(nodes, 0.0) | np.isclose(nodes, 1.0), axis=1))
    free = np.setdiff1d(np.arange(len(nodes)), boundary)
    reference_pressure = np.zeros(len(nodes))
    reference_pressure[boundary] = exact_pressure(nodes[boundary])
    rhs = forcing[free] - A[free][:, boundary] @ reference_pressure[boundary]
    with threadpool_limits(1):
        reference_pressure[free] = solve_linear(A[free][:, free], rhs)
    _, _, basis, gradient, _ = tabulate(reference_mesh, 2, bary)
    points = np.einsum("qi,tia->tqa", bary, reference_mesh.points[reference_mesh.cells])
    difference = reference_pressure[dofs] @ basis.T - exact_pressure(points.reshape(-1, 2)).reshape(points.shape[:2])
    error = float(np.sqrt(reference_mesh.areas @ (difference**2 @ weights)))
    classical_rows.append({"resolution": resolution, "elements": len(reference_mesh.cells),
                           "pressure_L2": error})
for row in classical_rows:
    print(row)
# Polynomial patches can be exactly represented, in which case all levels are
# at roundoff. Otherwise verify the classical reference's own refinement.
assert (max(row["pressure_L2"] for row in classical_rows) < 1e-10
        or all(b["pressure_L2"] < a["pressure_L2"] for a, b in zip(classical_rows, classical_rows[1:])))
centers = reference_mesh.points[reference_mesh.cells].mean(axis=1)
_, _, center_basis, center_gradient, _ = tabulate(reference_mesh, 2, np.full((1, 3), 1/3))
reference_values = (reference_pressure[dofs] @ center_basis.T)[:, 0]
reference_flux = -np.einsum("ti,tqia->tqa", reference_pressure[dofs], center_gradient)[:, 0]
fig, axes = plt.subplots(1, 2, figsize=(9, 4), layout="constrained")
for ax, values, title in zip(axes, (reference_values, np.linalg.norm(reference_flux, axis=1)),
                             ("Fine classical P2 pressure", "Fine classical Darcy flux magnitude"), strict=True):
    artist = ax.tripcolor(*reference_mesh.points.T, reference_mesh.cells, facecolors=values, cmap="viridis")
    for edge in macro.faces:
        ax.plot(*macro.points[edge].T, color="black", lw=0.5, alpha=0.7)
    ax.set(title=title, xlabel="x", ylabel="y", aspect="equal")
    fig.colorbar(artist, ax=ax)
plt.show()

{'resolution': 16, 'elements': 512, 'pressure_L2': 0.0005479034106938733}
{'resolution': 32, 'elements': 2048, 'pressure_L2': 6.873255317566801e-05}
{'resolution': 64, 'elements': 8192, 'pressure_L2': 8.600387223616975e-06}

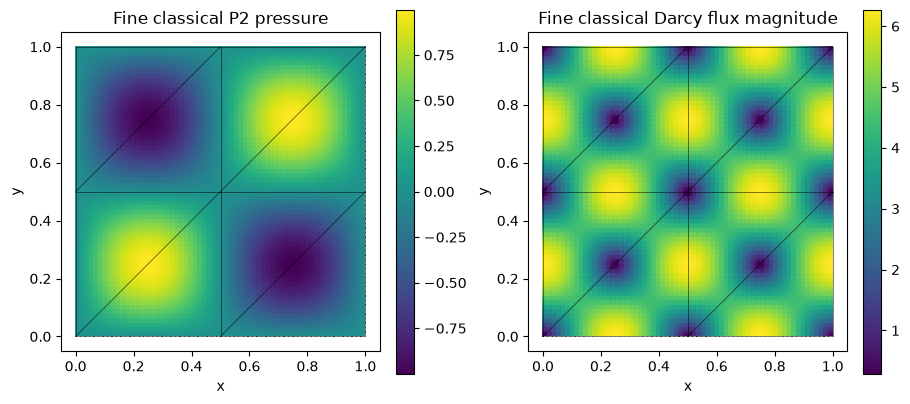

Figure 2 — unfitted variational workflow

7. Refine the independent trace scale

Keep the same 16 macrotriangles, P8 local pressure and 32 local edge subdivisions. Refine only the independent P1 skeletal segmentation through \(s=1,2,4,8,16,32\) pieces. The refined scale is \(h_\Gamma=0.5/s\), rather than the fixed macro diameter. This follows the smooth trace-refinement setting in section 6.1 of Chaumont-Frelet, Paredes and Valentin (2026).

The trace approximation and ideal-local MHM argument give

\[ \inf_{\mu\in\Lambda_{h_\Gamma,\ell}} \lVert\lambda-\mu\rVert_\Lambda =O(h_\Gamma^{\ell+3/2}). \]

For \(\ell=1\), Theorem 2, equation (20), gives a trace contribution of order \(h_\Gamma^{5/2}\) to the broken-gradient estimate. The assumptions include pressure piecewise \(H^4\), diffusion piecewise \(W^{2,\infty}\) on Lipschitz physical material regions with bounded extension operators, and \(A\nabla p\in H(\operatorname{div})\). Sections 3–4 also require regular quasi-uniform macrocells and skeletal subfaces contained in individual material regions. The smooth two-dimensional mesh here satisfies these geometric conditions. Three-dimensional projection constants depend on subface shape (Remark 1); the theorem does not provide uniform constants for arbitrary thin cut polygons.

The executed P8/r32 finite local approximation is controlled separately by higher quadrature and local refinement. The target 2.5 requires its error to be smaller than the trace contribution. A heterogeneous material, singular physical domain, unresolved local solver, or simultaneous macro refinement does not inherit this smooth fixed-macro rate without the corresponding hypotheses.

Recompute orders from the numerical record

For successive physical errors at the actual refinement sizes, compute

\[ r_i=\frac{\log(E_{i-1}/E_i)}{\log(h_{i-1}/h_i)}. \]

The cell below reads the attributed record and recomputes the complete table, consecutive orders, final-four-level fitted slope and plot. It does not choose a PDE or rerun the acquisition. For a justified target \(q\), the maximum/minimum of \(E/h^q\) over the final four levels measures stabilization of its amplitude. Pressure orders reported as observations are kept separate from theorem targets.

import json
from IPython.display import Markdown, display
from examples.tutorial_convergence import refinement_series, asymptotic_summary, plot_method_series
refinement_record = ROOT / 'examples/results/unfitted/convergence/rate-verification.json'
refinement_data = json.loads(refinement_record.read_text(encoding='utf-8'))
refinement_family = next((refinement_row for refinement_row in refinement_data['families'] if refinement_row['trace_degree'] == 1))
refinement_rows = [dict(H=0.5 / refinement_segments, error=refinement_error) for refinement_segments, refinement_error in zip(refinement_family['segments'], refinement_family['errors'], strict=True)]
refinement_error_keys = {'broken gradient L2': 'error'}
refinement_targets = {'broken gradient L2': 2.5}
refinement_rows = sorted(refinement_rows, key=lambda refinement_row: refinement_row['H'], reverse=True)
refinement_sizes = np.asarray([refinement_row['H'] for refinement_row in refinement_rows])
refinement_field_errors = {refinement_field: np.asarray([refinement_row[refinement_key] for refinement_row in refinement_rows]) for refinement_field, refinement_key in refinement_error_keys.items()}
refinement_orders = {refinement_field: np.log(refinement_values[:-1] / refinement_values[1:]) / np.log(refinement_sizes[:-1] / refinement_sizes[1:]) for refinement_field, refinement_values in refinement_field_errors.items()}
refinement_header = ['Refinement size'] + [refinement_column for refinement_field in refinement_error_keys for refinement_column in (refinement_field, 'Order')]
refinement_lines = [' | '.join(refinement_header), ' | '.join(['---'] * len(refinement_header))]
for refinement_index, refinement_size in enumerate(refinement_sizes):
    refinement_values = [f'{refinement_size:.6g}']
    for refinement_field in refinement_error_keys:
        refinement_values.extend([f'{refinement_field_errors[refinement_field][refinement_index]:.6e}', '—' if refinement_index == 0 else f'{refinement_orders[refinement_field][refinement_index - 1]:.3f}'])
    refinement_lines.append(' | '.join(refinement_values))
display(Markdown('\n'.join(refinement_lines)))
refinement_series_data = refinement_series(refinement_record, refinement_rows, 'H', refinement_error_keys, refinement_targets, method='unfitted', spaces='P8/r32 locals; segmented P1 traces; 16 fixed macrotriangles', rate_provenance='Chaumont-Frelet, Paredes and Valentin (2026), Theorem 2, equation (20): fixed-macro trace contribution of order 5/2 for q=ell=1 with exact local solves, pressure piecewise H^4 and A piecewise W^{2,infinity} on Lipschitz material regions, A grad(p) in H(div), fitted skeletal subfaces and regular quasi-uniform macrocells; finite P8/r32 local error is controlled separately.', refinement='trace segment size on a fixed macro mesh', root=ROOT)
print({'record': refinement_series_data['record'], 'sha256': refinement_series_data['sha256']})
for refinement_field, refinement_summary in asymptotic_summary(refinement_series_data).items():
    print(refinement_field, {'last_three_orders': [round(refinement_order, 3) for refinement_order in refinement_summary['orders']], 'fitted_order': round(refinement_summary['fitted_order'], 3), 'target': refinement_summary['target'], 'normalized_amplitude_ratio': refinement_summary.get('amplitude_ratio')})
plot_method_series(refinement_series_data)
plt.show()
Refinement size broken gradient L2 Order
0.5 1.793579e+00 —
0.25 2.320796e-01 2.950
0.125 3.931712e-02 2.561
0.0625 6.991994e-03 2.491
0.03125 1.242905e-03 2.492
0.015625 2.201390e-04 2.497
{'record': 'examples/results/unfitted/convergence/rate-verification.json', 'sha256': '4f9ff4518fcaf820bb4d8f743eb6cecd05387eb4b71864abc35faac07aa856ff'}
broken gradient L2 {'last_three_orders': [2.491, 2.492, 2.497], 'fitted_order': 2.493, 'target': 2.5, 'normalized_amplitude_ratio': 1.0135383811398362}

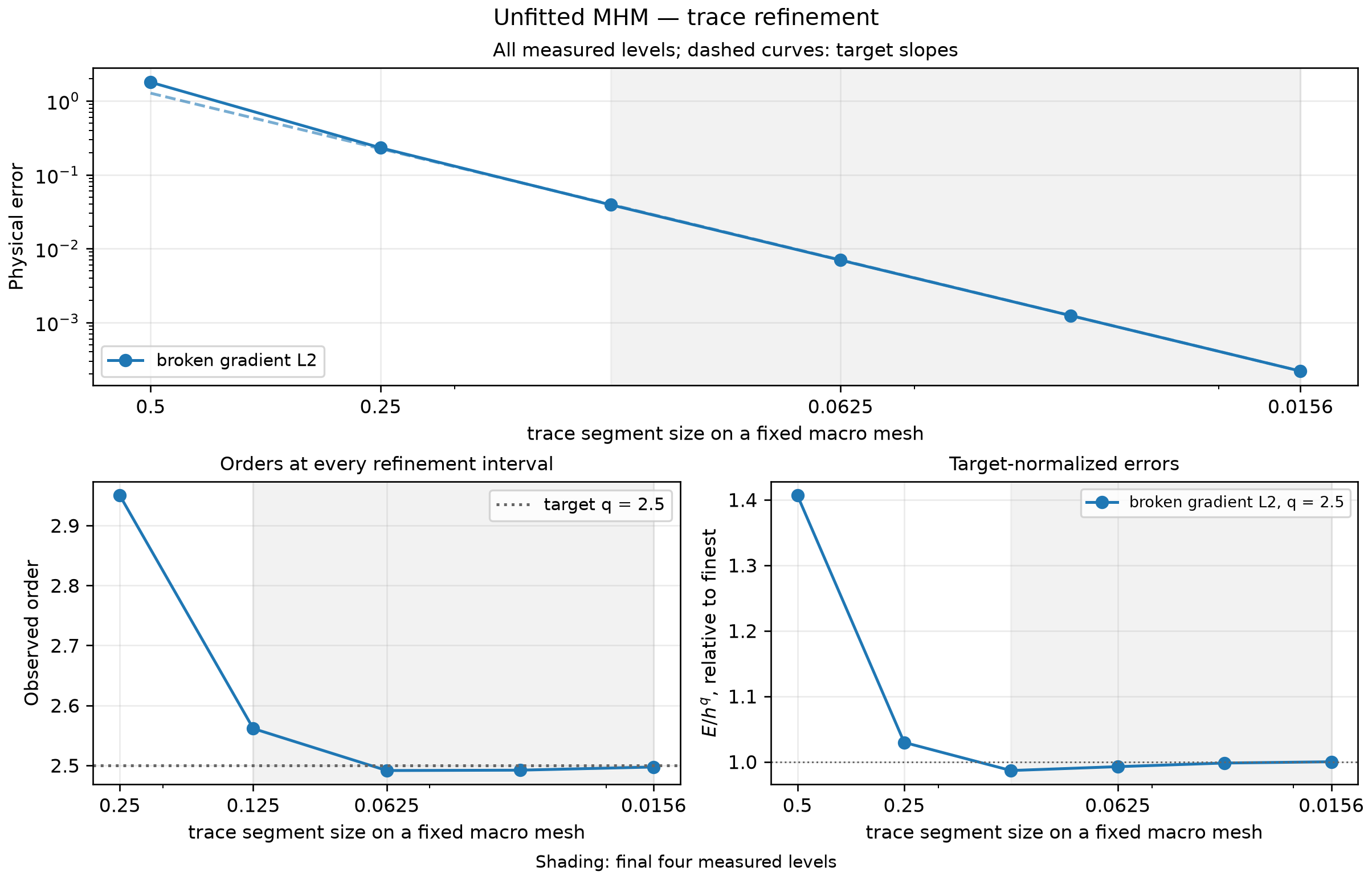

Physical errors, successive orders and normalized amplitudes

SVG · PDF

All coarse and fine measurements are retained; shading covers the final four levels. The publication figure is generated from the same attributed record read by the notebook, separately from its embedded field plots. See convergence plot conventions for the target curves, interval orders and normalized amplitudes.

Reproduce this tutorial

Open the notebook linked at the top. Its checksum-verified companion supplies inspectable support files and the refinement record. The notebook executes the variational workflow; its convergence cell reads the record and recomputes the table and plot, without rerunning the full acquisition. Use the installation guide for notebook, plotting and native-backend requirements. From a source checkout:

pixi run --locked -e introduction jupyter lab notebooks/darcy/unfitted_trace_workflow.ipynb

References

  • Théophile Chaumont-Frelet, Diego Paredes, and Frédéric Valentin (2026). Flux approximation on unfitted meshes and application to multiscale hybrid-mixed methods, Computers & Mathematics with Applications 209, 16–27. DOI: 10.1016/j.camwa.2026.01.016.
