Residual Petrov–Galerkin MHM

Open the step-by-step notebook · Download notebook

We declare the primal local equations, add a user-written global residual form, and lift its boundary residual through the same local solver owner. The physical pressure is \(p=\sin(2\pi x)\sin(2\pi y)\), with identity diffusion and independently derived source \(8\pi^2p\). Exterior pressure is zero.

The construction follows Fernando, Martins, Pereira and Valentin (2023). The trace multiplier of the base field differs from the enriched conservative normal flux. Neither volume gradient is automatically H(div)-conforming.

import numpy as np
import matplotlib.pyplot as plt
import ufl
from pymhm import (
    Equation, FaceSpace, LocalContext, MeshHierarchy, SkeletonSpace, TriangleMesh,
    assemble, bind_interface, bind_problem, columns, solve,
)
from threadpoolctl import threadpool_limits


def exact_pressure(points: np.ndarray) -> np.ndarray:
    """Analytical pressure; it vanishes on every exterior edge."""
    return np.sin(2 * np.pi * points[:, 0]) * np.sin(2 * np.pi * points[:, 1])


def exact_gradient(points: np.ndarray) -> np.ndarray:
    """Independently differentiated physical pressure gradient."""
    x, y = 2 * np.pi * points.T
    return 2 * np.pi * np.column_stack((np.cos(x) * np.sin(y), np.sin(x) * np.cos(y)))


def source(points: np.ndarray) -> np.ndarray:
    """Negative Laplacian computed independently of the discrete operator."""
    return 8 * np.pi**2 * exact_pressure(points)
from scipy import sparse
from pymhm import with_global_equation
from pymhm.fem.scalar.triangle import scalar_operators, trace_coupling
from pymhm.fem.traces.jump import face_jump_form
from pymhm.postprocessing.nodal import nodal_field
from pymhm.postprocessing.fields import DiscreteField
from pymhm.core.reconstruction import reconstruct_local
from pymhm.postprocessing.solutions import PGMHMSolution

1. Define spaces

Choose trace degree one and local degree three. In two dimensions this meets the energy-estimate restriction \(k\ge\ell+d\) and \(\ell\ge1\). Select \(\alpha=0.1\) and certified diffusion lower bound one.

macro = TriangleMesh.unit_square(2)
local_meshes = tuple(macro.submesh(cell, 2) for cell in range(len(macro.cells)))
hierarchy = MeshHierarchy(macro, local_meshes)
skeleton = SkeletonSpace(macro, tuple(FaceSpace.uniform(1) for _ in macro.faces))
interface = bind_interface(skeleton, convention="normal")
degree, alpha, lower = 3, 0.1, 1.0

2. Define the primal volume and independent trace forms

\[ A_T(p,v)=(\nabla p,\nabla v)_T,\qquad B_T(\lambda,v)=\langle\lambda,v\rangle_{\partial T},\qquad C_T(p,\mu)=-\langle p,\mu\rangle_{\partial T}. \]

For reference, the volume integrand is ufl.inner(ufl.grad(p), ufl.grad(v)) * dx. Here the shared Basix scalar_operators operation integrates this declared volume form in the portable nodal basis used by the common jump operator. It supplies element tabulation and quadrature; it does not select the multiscale method. The block signs, kernel, physical moment and global equation below are explicit. trace_coupling already applies canonical incidence, hence coordinates="global".

def local_equations(local: LocalContext):
    """Declare volume diffusion, physical mean and signed scalar trace forms."""
    fine = local.mesh
    A, mass, force = scalar_operators(fine, degree, diffusion=1.0, source=source, order=12)
    B = trace_coupling(macro, local.cell, fine, skeleton, degree)
    constant = np.ones((A.shape[0], 1))
    field = nodal_field("pressure", fine, degree)
    local.field("pressure", evaluator=field.evaluator,
                gradient_evaluator=field.gradient_evaluator, basis_id=field.basis_id)
    return local.equations(a=A, L=force, b=B, c=-B.T,
                          kernel=constant, moments=mass @ constant,
                          coordinates="global", metadata=(fine,))


def global_equation(global_context):
    """Homogeneous weak Dirichlet pressure in the independent trace test."""
    boundary, _ = global_context.boundary_data(0.0, order=8)
    return Equation(0, global_context.trace_load(-boundary))


problem = bind_problem(hierarchy, interface, local_equations,
                       global_equation=global_equation, retained=1)
with threadpool_limits(1):
    base_system = assemble(problem)

3. Write the global residual jump equation

Let \(J_F z+j_F^f\) be the one-sided pressure jump reconstructed from reduced coordinates \(z\), and set \(\tau_F=\alpha/(2H_F)\). The additional global terms are

\[ \begin{aligned} D_{\mathrm{jump}}&=\sum_F J_F^T W_F\tau_FJ_F,\\ g_{\mathrm{jump}}&=\sum_FJ_F^TW_F\tau_F(p_D-j_F^f). \end{aligned} \]

face_jump_form supplies executed response maps, common quadrature and one-sided trace evaluation. The multiplication and global accumulation below implement the two displayed forms. Coincident global entries are summed by sparse COO assembly.

penalties = tuple(face_jump_form(base_system, skeleton, face, degree, 12,
                                 alpha, lower, 0.0)
                  for face in range(len(macro.faces)))
rows, columns_, entries = [], [], []
load = np.zeros_like(base_system.rhs)
for data in penalties:
    weighted = data.weights * data.coefficient
    block = data.jump.T @ (weighted[:, None] * data.jump)
    forcing = data.jump.T @ (weighted * (data.prescribed - data.source_jump))
    rows.extend(np.repeat(data.indices, len(data.indices)))
    columns_.extend(np.tile(data.indices, len(data.indices)))
    entries.extend(block.ravel())
    np.add.at(load, data.indices, forcing)
D_jump = sparse.coo_matrix((entries, (rows, columns_)),
                          shape=base_system.matrix.shape).tocsc()
system = with_global_equation(base_system, Equation(D_jump, load))
with threadpool_limits(1):
    coefficients = solve(system)

4. Define and solve the enrichment problem

The normal correction is \(\delta\lambda_F=-\tau_F([p]-p_D)\). Its local boundary load is assembled from the declared one-sided pairing, and the correction has zero physical volume mean:

\[ A_T\delta p_T=-B_T\delta\lambda_T,\qquad \int_T\delta p_T=0. \]

The same reconstruct_local owner solves this additional local load. No factorization or basis algorithm is copied into the notebook. The final PGMHMSolution is a physical data record for norms and conservation; it does not construct or choose the problem.

coordinates = np.r_[coefficients.trace, *coefficients.coarse]
extra = [np.zeros(len(response.problem.load)) for response in system.responses]
for data in penalties:
    jump = data.jump @ coordinates[data.indices] + data.source_jump - data.prescribed
    normal_correction = -data.coefficient * jump
    for cell, sign, evaluation in data.sides:
        extra[cell] += sign * (evaluation.T @ (data.weights * normal_correction))
enriched = []
for response, base, boundary_load in zip(system.responses, coefficients.fields, extra, strict=True):
    local_problem = response.problem.with_load(-boundary_load)
    correction = reconstruct_local(local_problem, np.zeros(local_problem.coupling.shape[1]),
                                   np.zeros(local_problem.coarse_basis.shape[1]))
    enriched.append(base + correction)
solution = PGMHMSolution(skeleton, local_meshes, coefficients.fields, tuple(enriched),
                        coefficients, system, 1.0, source, degree, 12,
                        alpha, lower, penalties, tuple(extra))
pressure_fields = tuple(DiscreteField(nodal_field("pressure", fine, degree), values)
                        for fine, values in zip(local_meshes, enriched, strict=True))
print({"pressure_L2": solution.l2_error(exact_pressure, order=12, enriched=True),
       "Darcy_flux_L2": solution.flux_l2_error(lambda x: -exact_gradient(x), order=12, enriched=True),
       "enriched_macro_balance": float(np.max(abs(solution.conservation_residuals())))})
assert np.max(abs(solution.conservation_residuals())) < 1e-10

{'pressure_L2': 0.12576942534393837, 'Darcy_flux_L2': 1.8288671828046679, 'enriched_macro_balance': 3.497202527569243e-15}

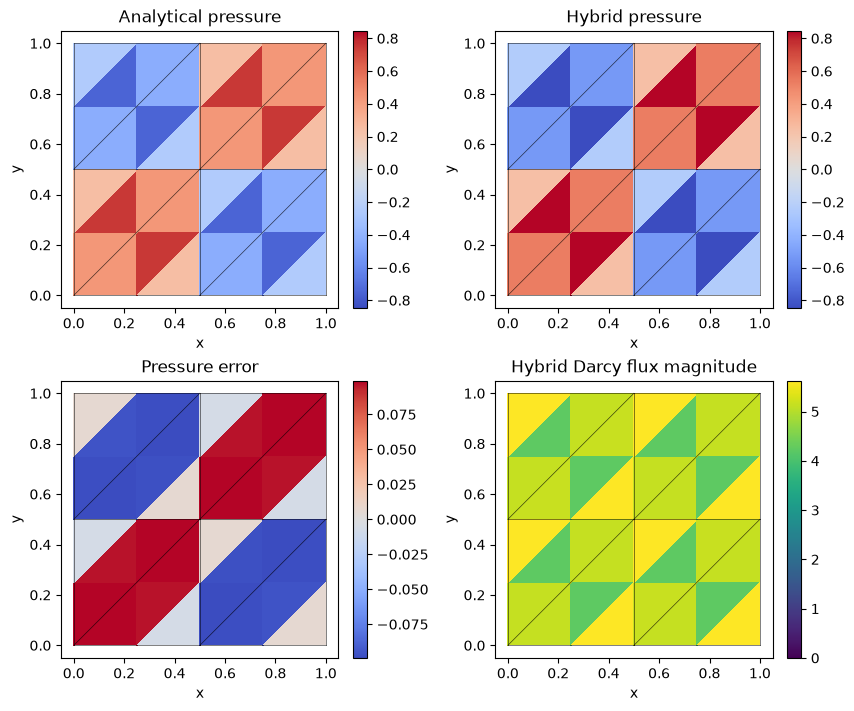

5. Plot the enriched physical pressure

The macro mesh is shown on every analytical, numerical and error panel.

fig, axes = plt.subplots(2, 2, figsize=(8.5, 7), layout="constrained")
all_exact, all_values, panels = [], [], []
for fine, field in zip(local_meshes, pressure_fields, strict=True):
    points = fine.points[fine.cells].mean(axis=1)
    exact, values = exact_pressure(points), field.evaluate(points)
    flux_magnitude = np.linalg.norm(-field.gradient(points), axis=1)
    panels.append((fine, exact, values, flux_magnitude))
    all_exact.extend(exact)
    all_values.extend(values)
common = max(np.max(np.abs(all_exact)), np.max(np.abs(all_values)))
error_max = max(np.max(abs(values - exact)) for _, exact, values, _ in panels)
flux_max = max(np.max(flux) for _, _, _, flux in panels)
titles = ("Analytical pressure", "Hybrid pressure", "Pressure error", "Hybrid Darcy flux magnitude")
for index, (ax, title) in enumerate(zip(axes.flat, titles, strict=True)):
    for fine, exact, values, flux in panels:
        value = (exact, values, values - exact, flux)[index]
        limit = (common, common, error_max, flux_max)[index]
        artist = ax.tripcolor(*fine.points.T, fine.cells, facecolors=value,
                             vmin=0.0 if index == 3 else -limit,
                             vmax=limit, cmap="viridis" if index == 3 else "coolwarm")
    for edge in macro.faces:
        ax.plot(*macro.points[edge].T, color="black", lw=0.5, alpha=0.7)
    ax.set(title=title, xlabel="x", ylabel="y", aspect="equal")
    fig.colorbar(artist, ax=ax)
plt.show()

Independently refined classical primal Galerkin baseline

The classical baseline uses one globally conforming P2 space on independent 16×16, 32×32 and 64×64 triangular grids, with the same physical coefficient, source and boundary values:

\[ (\nabla p_h^{\mathrm{CG}},\nabla v_h)=(f,v_h),\qquad p_h^{\mathrm{CG}}\big\vert_{\partial\Omega}=p_D. \]

The shared volume operator integrates this already stated form. The explicit essential lifting \(A_{ff}p_f=f_f-A_{fb}p_D\) selects its classical boundary values. Check this reference's own errors before comparing fields. The multiscale solve above retains its simpler macro mesh and separate local spaces; it does not use this refined global grid. An exactly representable polynomial has roundoff-level classical errors on all three grids.

from threadpoolctl import threadpool_limits
from pymhm.fem.scalar.triangle import scalar_operators, nodal_space, tabulate
from pymhm.fem.scalar.operators import triangle_quadrature
from pymhm.linalg.linear import solve_linear

classical_rows = []
bary, weights = triangle_quadrature(12)
for resolution in (16, 32, 64):
    reference_mesh = TriangleMesh.unit_square(resolution)
    A, _, forcing = scalar_operators(reference_mesh, 2, diffusion=1.0, source=source, order=12)
    dofs, nodes = nodal_space(reference_mesh, 2)
    boundary = np.flatnonzero(np.any(np.isclose(nodes, 0.0) | np.isclose(nodes, 1.0), axis=1))
    free = np.setdiff1d(np.arange(len(nodes)), boundary)
    reference_pressure = np.zeros(len(nodes))
    reference_pressure[boundary] = exact_pressure(nodes[boundary])
    rhs = forcing[free] - A[free][:, boundary] @ reference_pressure[boundary]
    with threadpool_limits(1):
        reference_pressure[free] = solve_linear(A[free][:, free], rhs)
    _, _, basis, gradient, _ = tabulate(reference_mesh, 2, bary)
    points = np.einsum("qi,tia->tqa", bary, reference_mesh.points[reference_mesh.cells])
    difference = reference_pressure[dofs] @ basis.T - exact_pressure(points.reshape(-1, 2)).reshape(points.shape[:2])
    error = float(np.sqrt(reference_mesh.areas @ (difference**2 @ weights)))
    classical_rows.append({"resolution": resolution, "elements": len(reference_mesh.cells),
                           "pressure_L2": error})
for row in classical_rows:
    print(row)
# Polynomial patches can be exactly represented, in which case all levels are
# at roundoff. Otherwise verify the classical reference's own refinement.
assert (max(row["pressure_L2"] for row in classical_rows) < 1e-10
        or all(b["pressure_L2"] < a["pressure_L2"] for a, b in zip(classical_rows, classical_rows[1:])))
centers = reference_mesh.points[reference_mesh.cells].mean(axis=1)
_, _, center_basis, center_gradient, _ = tabulate(reference_mesh, 2, np.full((1, 3), 1/3))
reference_values = (reference_pressure[dofs] @ center_basis.T)[:, 0]
reference_flux = -np.einsum("ti,tqia->tqa", reference_pressure[dofs], center_gradient)[:, 0]

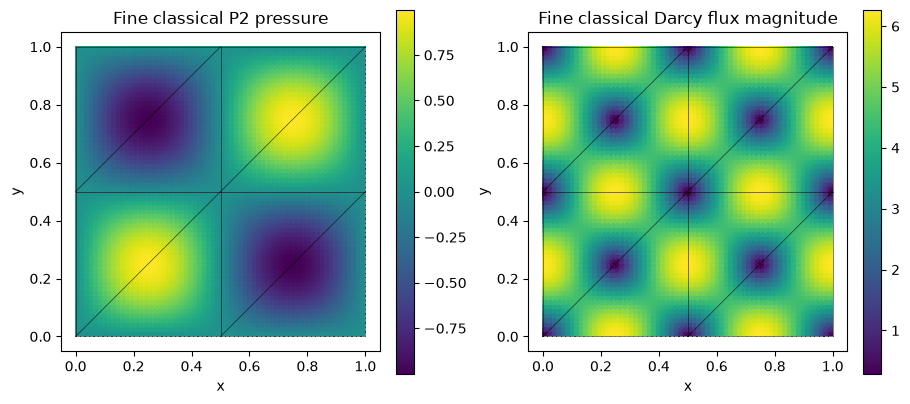

fig, axes = plt.subplots(1, 2, figsize=(9, 4), layout="constrained")
for ax, values, title in zip(axes, (reference_values, np.linalg.norm(reference_flux, axis=1)),
                             ("Fine classical P2 pressure", "Fine classical Darcy flux magnitude"), strict=True):
    artist = ax.tripcolor(*reference_mesh.points.T, reference_mesh.cells, facecolors=values, cmap="viridis")
    for edge in macro.faces:
        ax.plot(*macro.points[edge].T, color="black", lw=0.5, alpha=0.7)
    ax.set(title=title, xlabel="x", ylabel="y", aspect="equal")
    fig.colorbar(artist, ax=ax)
plt.show()

{'resolution': 16, 'elements': 512, 'pressure_L2': 0.0005479034106938733}
{'resolution': 32, 'elements': 2048, 'pressure_L2': 6.873255317566801e-05}
{'resolution': 64, 'elements': 8192, 'pressure_L2': 8.600387223616975e-06}

6. Reach the smooth enriched-flux regime

Keep the declared residual-jump equations and enrichment, but refine the smooth unit-square problem

\[ p=\sin(2\pi x)\sin(2\pi y),\qquad f=8\pi^2p, \]

with identity permeability and homogeneous exterior pressure. Use P3 local pressure on one triangle, P1 traces, \(\alpha=0.1\), and all macro resolutions \(n=2,4,8,16,32,64\). The local diameter is \(h=H\) throughout this family.

The energy estimates in section 5 of Fernando, Martins, Pereira and Valentin (2023) retain both local and skeleton discretization contributions:

\[ \begin{aligned} \lVert p-\widetilde p_{Hh}\rVert_V &\le C\bigl( h^k\lvert p\rvert_{H^{k+1}(\mathcal T_H)}\\ &\qquad +H^{\ell+1}\lvert K\nabla p\rvert_{H^{\ell+1}(\mathcal T_H)} \bigr). \end{aligned} \]

The analysis requires \(\ell\ge1\), \(k\ge\ell+d\), the stated regularity and sufficiently small stabilization for uniform stability. The degrees here satisfy this condition in two dimensions. The paper does not supply a universal numerical threshold that makes \(\alpha=0.1\) admissible on arbitrary meshes. The second-order term is the energy target; pressure order three is observed separately for this numerical family.

The plotted vector field is \(-K\nabla\widetilde p_{Hh}\) after enrichment. Macro balance does not make this raw volume flux globally H(div)-conforming. The acquisition checks the enriched local nodal equations, global jump equation and macro balance separately. Independent order-10 and order-12 quadratures control the full pressure and physical vector-flux errors.

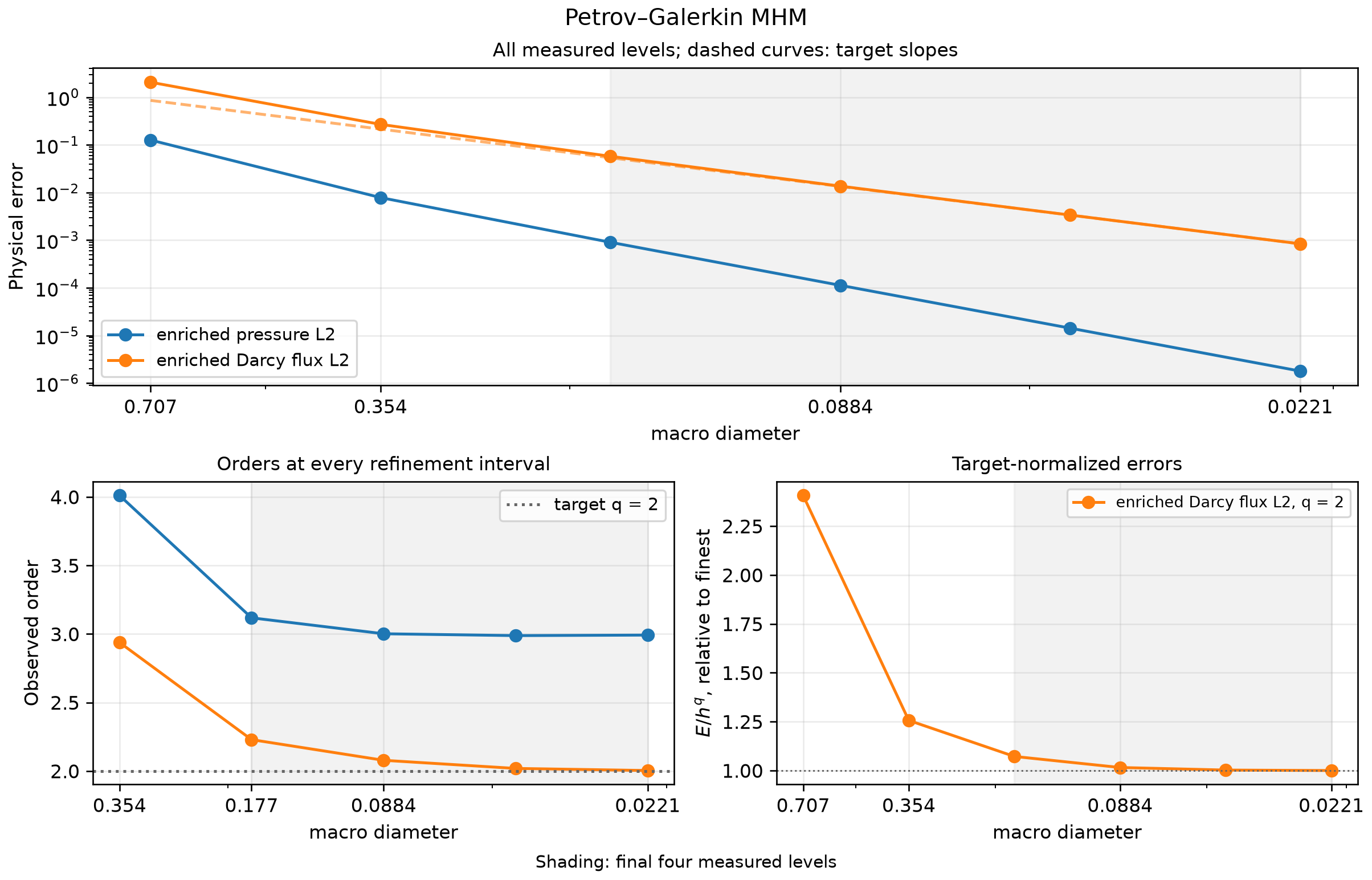

Recompute orders from the numerical record

For successive physical errors at the actual refinement sizes, compute

\[ r_i=\frac{\log(E_{i-1}/E_i)}{\log(h_{i-1}/h_i)}. \]

The cell below reads the attributed record and recomputes the complete table, consecutive orders, final-four-level fitted slope and plot. It does not choose a PDE or rerun the acquisition. For a justified target \(q\), the maximum/minimum of \(E/h^q\) over the final four levels measures stabilization of its amplitude. Pressure orders reported as observations are kept separate from theorem targets.

import json
from IPython.display import Markdown, display
from examples.tutorial_convergence import refinement_series, asymptotic_summary, plot_method_series
refinement_record = ROOT / 'examples/results/tutorial-methods/pgmhm-current.json'
refinement_data = json.loads(refinement_record.read_text(encoding='utf-8'))
refinement_rows = refinement_data['rows']
refinement_error_keys = {'enriched pressure L2': 'pressure_l2', 'enriched Darcy flux L2': 'flux_l2'}
refinement_targets = {'enriched Darcy flux L2': 2.0}
refinement_rows = sorted(refinement_rows, key=lambda refinement_row: refinement_row['macro_diameter'], reverse=True)
refinement_sizes = np.asarray([refinement_row['macro_diameter'] for refinement_row in refinement_rows])
refinement_field_errors = {refinement_field: np.asarray([refinement_row[refinement_key] for refinement_row in refinement_rows]) for refinement_field, refinement_key in refinement_error_keys.items()}
refinement_orders = {refinement_field: np.log(refinement_values[:-1] / refinement_values[1:]) / np.log(refinement_sizes[:-1] / refinement_sizes[1:]) for refinement_field, refinement_values in refinement_field_errors.items()}
refinement_header = ['Refinement size'] + [refinement_column for refinement_field in refinement_error_keys for refinement_column in (refinement_field, 'Order')]
refinement_lines = [' | '.join(refinement_header), ' | '.join(['---'] * len(refinement_header))]
for refinement_index, refinement_size in enumerate(refinement_sizes):
    refinement_values = [f'{refinement_size:.6g}']
    for refinement_field in refinement_error_keys:
        refinement_values.extend([f'{refinement_field_errors[refinement_field][refinement_index]:.6e}', '—' if refinement_index == 0 else f'{refinement_orders[refinement_field][refinement_index - 1]:.3f}'])
    refinement_lines.append(' | '.join(refinement_values))
display(Markdown('\n'.join(refinement_lines)))
refinement_series_data = refinement_series(refinement_record, refinement_rows, 'macro_diameter', refinement_error_keys, refinement_targets, method='pgmhm', spaces='P3/r1 locals; P1 trace; residual enrichment; alpha=0.1', rate_provenance='Fernando et al. (2023), section 5: the energy estimate requires ell>=1, k>=ell+d, the stated regularity and sufficiently small alpha for uniform stability; energy order two and pressure order three are measured for the declared finite P3/P1 family with alpha=0.1.', refinement='macro diameter', root=ROOT)
print({'record': refinement_series_data['record'], 'sha256': refinement_series_data['sha256']})
for refinement_field, refinement_summary in asymptotic_summary(refinement_series_data).items():
    print(refinement_field, {'last_three_orders': [round(refinement_order, 3) for refinement_order in refinement_summary['orders']], 'fitted_order': round(refinement_summary['fitted_order'], 3), 'target': refinement_summary['target'], 'normalized_amplitude_ratio': refinement_summary.get('amplitude_ratio')})
plot_method_series(refinement_series_data)
plt.show()

Refinement size	enriched pressure L2	Order	enriched Darcy flux L2	Order
0.707107	1.264513e-01	—	2.069721e+00	—
0.353553	7.844525e-03	4.011	2.700667e-01	2.938
0.176777	9.037788e-04	3.118	5.761044e-02	2.229
0.0883883	1.128686e-04	3.001	1.364393e-02	2.078
0.0441942	1.422729e-05	2.988	3.366902e-03	2.019
0.0220971	1.788673e-06	2.992	8.397340e-04	2.003

{'record': 'examples/results/tutorial-methods/pgmhm-current.json', 'sha256': 'c863231e79d60fe867fb492c7869396b5cb74eed001564d49fef634454ace47f'}
enriched pressure L2 {'last_three_orders': [3.001, 2.988, 2.992], 'fitted_order': 2.993, 'target': None, 'normalized_amplitude_ratio': None}
enriched Darcy flux L2 {'last_three_orders': [2.078, 2.019, 2.003], 'fitted_order': 2.032, 'target': 2.0, 'normalized_amplitude_ratio': 1.0719621019646848}

SVG · PDF

All coarse and fine measurements are retained; shading covers the final four levels. The publication figure is generated from the same attributed record read by the notebook, separately from its embedded field plots. See convergence plot conventions for the target curves, interval orders and normalized amplitudes.

The current acquisition compares full physical norms at error quadrature orders 10 and 12; the largest relative difference over all levels and fields is 6.487e-10. It also checks the original method equations in their declared coefficient coordinates, retaining global compatibility, local reconstruction and physical field errors as separate quantities.

Local Galerkin sensitivity at fixed macro resolution

Hold \(n=8\), the physical data and all trace spaces fixed, and double only the local subdivisions from 1 to 2. Pairwise differences are integrated on the nested finer partition using the executed coefficient bases. Discontinuous pressure and independent interface values remain separate. Both solutions are also compared directly with the analytical fields:

Field	Coarse error	Refined error	Field difference	Difference / coarse error
pressure L2	9.037788e-04	9.732966e-04	3.316190e-04	3.669e-01
physical Darcy flux L2	5.761044e-02	6.214497e-02	3.480406e-02	6.041e-01

At this coarse macro resolution, local refinement changes the enriched fields substantially and slightly increases both analytical errors. The table preserves that nonmonotonic result: local refinement alone does not guarantee monotonic pressure or volume-flux error for this jump-penalized formulation. The primary macro study uses its stated r1 family throughout, refining \(h\) and \(H\) together; its terminal order is compared with the full \(h^3+H^2\) energy estimate.

The full physical-error norms agree at quadrature orders 10 and 12, with maximum relative change 1.066e-14. For the two-grid sensitivity, the change in the integrated field difference divided by the coarse analytical error is 3.479e-15. This scale assesses the local contribution to that physical error and remains meaningful when the two fields differ only at roundoff. The raw differences at both quadrature orders and their unscaled relative changes remain in the local-control record (SHA256 8933c2e8c4f68a626276c4a0fc8e1b06e14334f8f8c413a2649137de27fe2350). Original equations and reconstruction constraints retain their separate unchanged checks.

Reproduce this tutorial

Open the notebook linked at the top. Its checksum-verified companion supplies inspectable support files and the refinement record. The notebook executes the variational workflow; its convergence cell reads the record and recomputes the table and plot, without rerunning the full acquisition. Use the installation guide for notebook, plotting and native-backend requirements. From a source checkout:

pixi run --locked -e introduction jupyter lab notebooks/darcy/pgmhm_workflow.ipynb

References

• Honório Fernando, Larissa Martins, Weslley Pereira, and Frédéric Valentin (2023). A Petrov–Galerkin multiscale hybrid-mixed method for the Darcy equation on polytopes. Computational and Applied Mathematics 42, article 173. DOI: 10.1007/s40314-023-02304-y.
