Independent normal and interior orders in three dimensions

HDiv3DFamily and solve_darcy_hdiv3d separate the normal polynomial degree from the complete interior divergence space. Adding zero-normal bubbles changes local approximation without adding macroface unknowns. Enriching a normal trace changes a different part of the discrete problem. The well comparisons include independent NeoPZ verification for their stated lower-order spaces. The higher orders below are checked against exact fields and native Basix operators.

Local spaces

For tetrahedra, pressure degree \(p\) and retained normal degree \(k\), with \(0\leq k\leq p+1\), define

\[ \begin{aligned} V_{p,k}(T)&=\{v\in[P_{p+1}(T)]^3: v\cdot n_F\in P_k(F)\text{ on every face }F\},\\ \operatorname{div}V_{p,k}(T)&=P_p(T). \end{aligned} \]

On a prism, horizontal components belong to \([P_{p+1}(\triangle)\otimes P_p(I)]^2\), and the vertical component belongs to \(P_p(\triangle)\otimes P_{p+1}(I)\). Retained normals are \(P_k\) on triangular faces and \(Q_k\) on rectangular faces, with \(0\leq k\leq p\). Pressure and divergence use the complete space \(W_{p,p}=P_p(\triangle)\otimes P_p(I)\).

Every zero-normal bubble of the declared parent space is retained. Physical Piola maps, face orientation and normal moments are applied before local condensation. A macro trace can further restrict these local normal spaces. Here p is the cell pressure degree and k is the normal-flux degree on each face. A triangular Pk face has (k+1)(k+2)/2 moments; a rectangular Qk face has (k+1)^2, since its degree is at most k in each of the two coordinates. Different faces have independent polynomial blocks. Adjacent cells share the canonical normal-flux moments of their common face, with opposite outward signs. The selected tetrahedral flux spaces have 18, 44 and 57 modes for (p,k) equal to (1,1), (2,2) and (3,1) respectively; the (2,2) prism has 75 modes.

The global skeletal coordinate in this mixed formulation represents physical normal-flux moments. A distinct local multiplier represents face pressure. The retained constant-pressure coordinate is a pressure amplitude; its physical integral also depends on the executed retained basis and the cell volume. The geometry is affine; this construction does not assert support for curved prisms or pyramids. Full matrix rank is not evidence of a uniform inf-sup constant as polynomial orders increase.

Complete parent normal polynomials determine the face restrictions. Rectangular parent-face tests use Basix orthogonal interval polynomials. A weighted QR change of the interior Nedelec tests also transforms the prescribed moment right-hand sides, preserving the declared interior coordinates. Bubble normalization uses positive diagonal factors to fix their orientation. The executed basis matrix remains part of each archived coefficient vector.

Five-level analytical comparison

The unit cube has \(K=I\), zero prescribed pressure, and

\[ p=\sin(\pi x)\sin(\pi y)\sin(\pi z),\qquad q=-\nabla p,\qquad f=3\pi^2p. \]

Each macrocell is one affine fine cell. Resolutions are \(n=1,2,3,4,5\), with \(6n^3\) tetrahedra or \(2n^3\) prisms. All macroface normal modes of the stated family are retained. Assembly uses order 12. Independent error rules 12 and 13 agree within \(2.7\times10^{-10}\) in the coarsest case and to floating-point precision on finer meshes. These are analytical verification cases rather than historical figure reproductions.

The level n counts equal intervals on each edge of the unit cube. The local refinement is r1: each macrocell contains one fine cell. These labels describe different mesh scales. The computed flux is an H(div) field obtained with the physical Piola map; it is distinct from the raw gradient of the discontinuous cell pressure. Fine-cell equilibrium means equality of all declared pressure test moments of its divergence and the source, rather than pointwise equality with a nonpolynomial manufactured source.

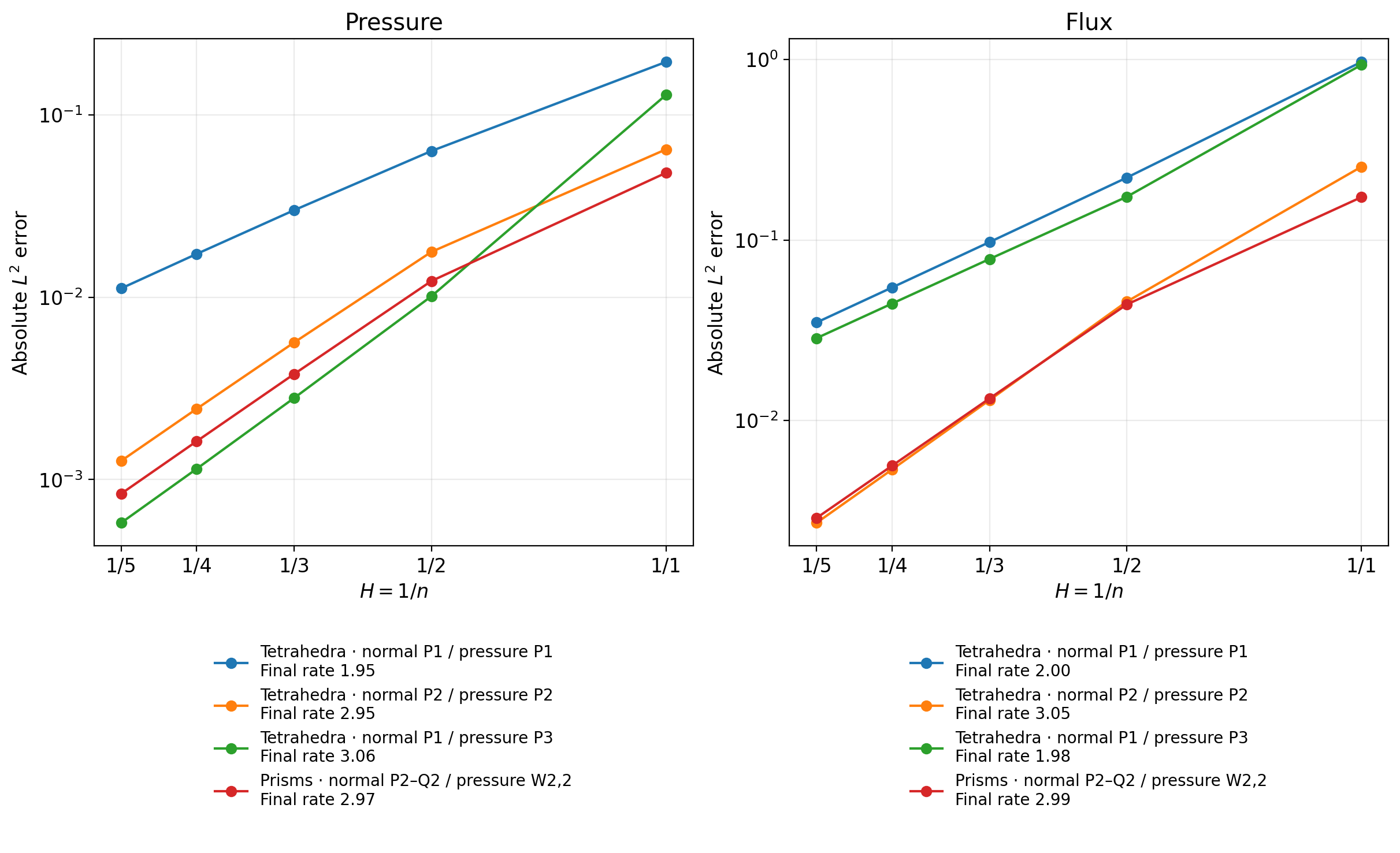

Geometry and orders	Pressure L2 error at n=5	Final rate	Flux L2 error at n=5	Final rate
Tetrahedron, p=1, k=1	1.11701e-2	1.951	3.48926e-2	2.003
Tetrahedron, p=2, k=2	1.26533e-3	2.946	2.70823e-3	3.051
Tetrahedron, p=3, k=1	5.78561e-4	3.058	2.85690e-2	1.979
Prism, p=2, k=2	8.35752e-4	2.969	2.88195e-3	2.988

The tetrahedral rows separate the roles of these spaces. Increasing interior order to \(p=3\) improves pressure, but keeping normal degree one retains a second-order flux limitation in this sequence. Increasing both to degree two yields third-order pressure and flux. An inaccurate coarse normal space cannot be repaired solely by adding local bubbles.

The maximum original physical block backward error is \(2.342\times10^{-14}\); the full uncondensed original saddle residual is at most \(5.269\times10^{-13}\), relative to its physical right-hand side. The blocks distinguish constitutive flux rows, pressure/divergence balance rows and normal-flux/trace rows. These are coefficient-row algebraic checks. The physical L2 errors of pressure, H(div) flux and divergence are integrated and reported separately using the terminal order-13 rule.

Pressure and flux components

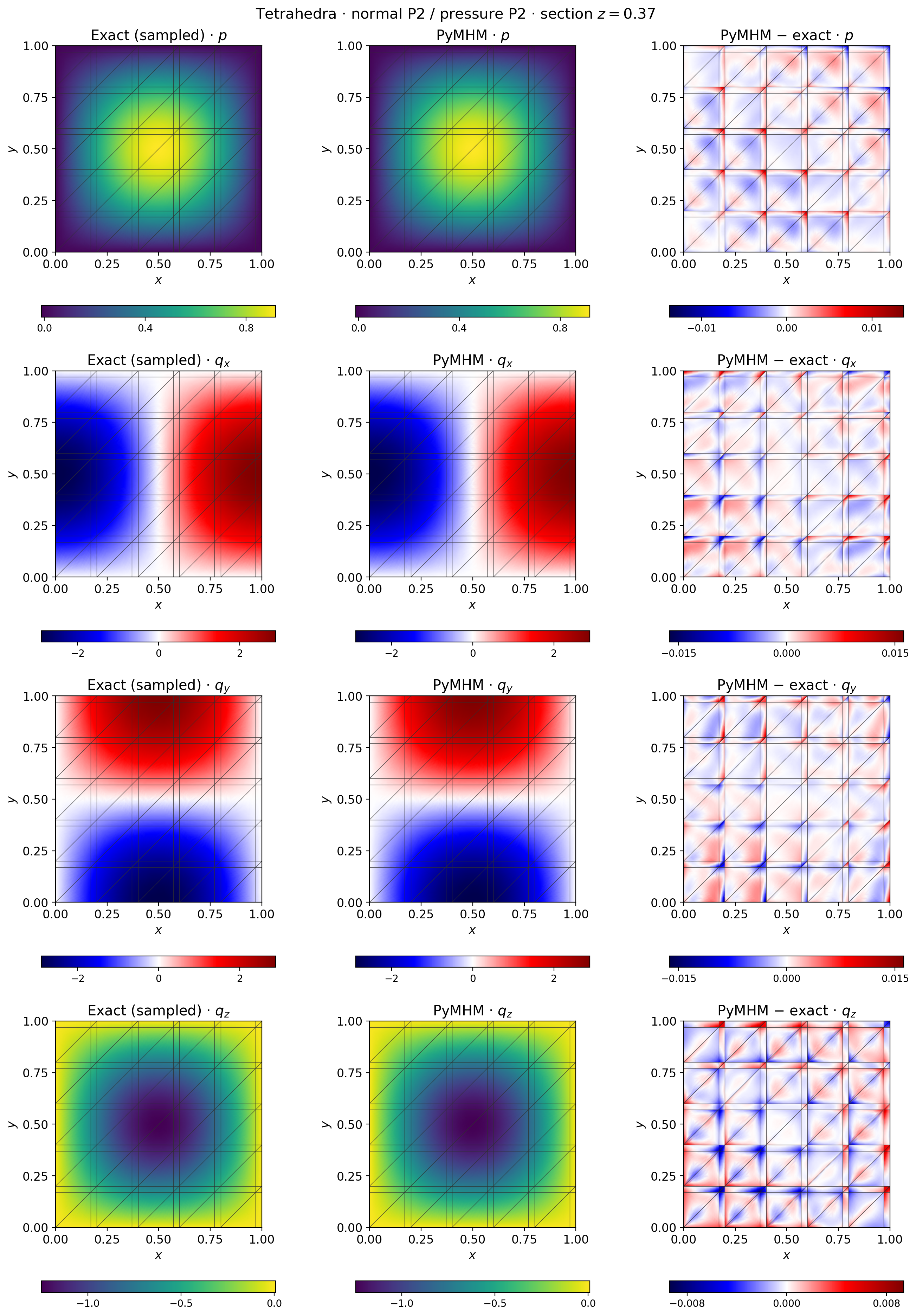

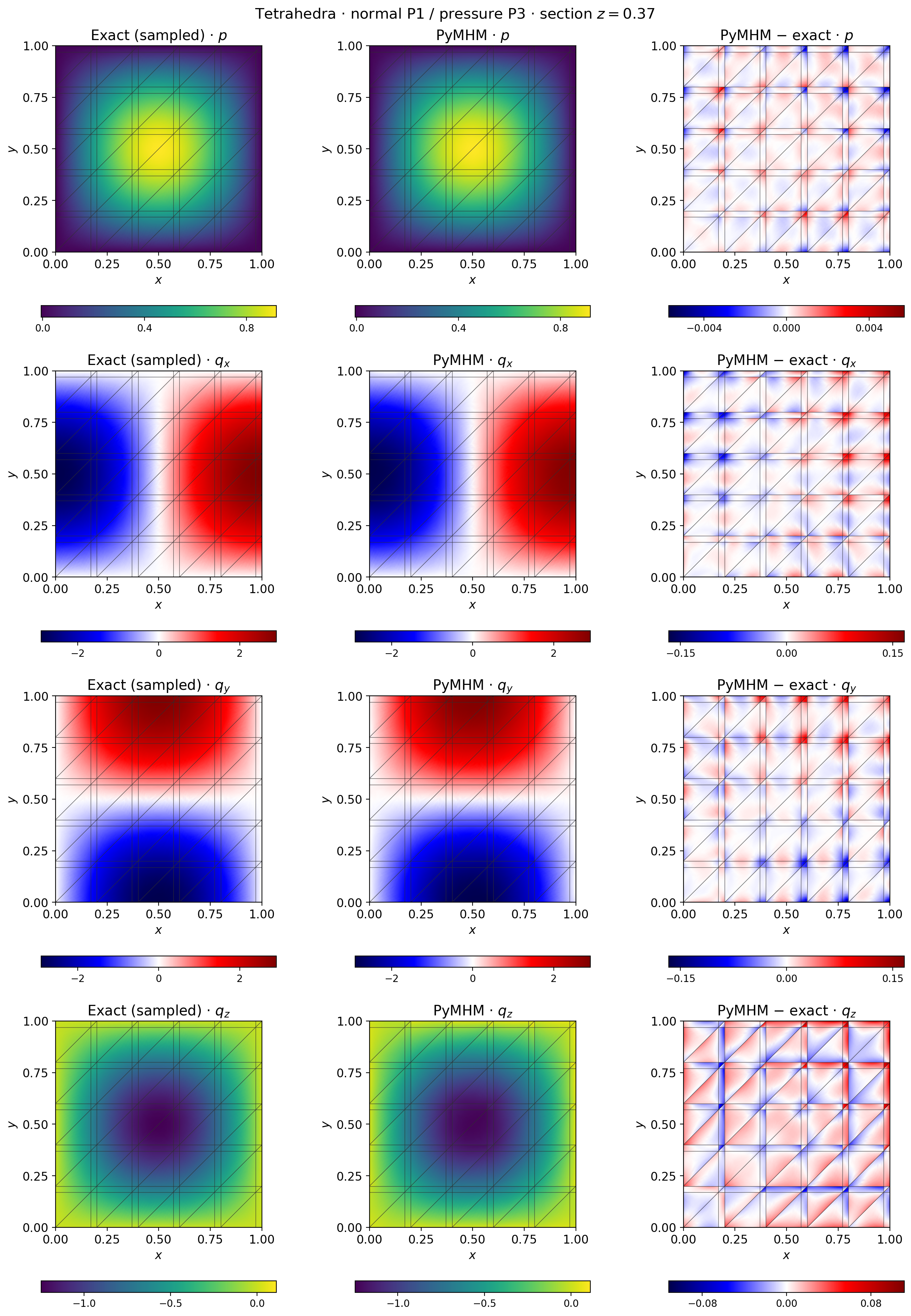

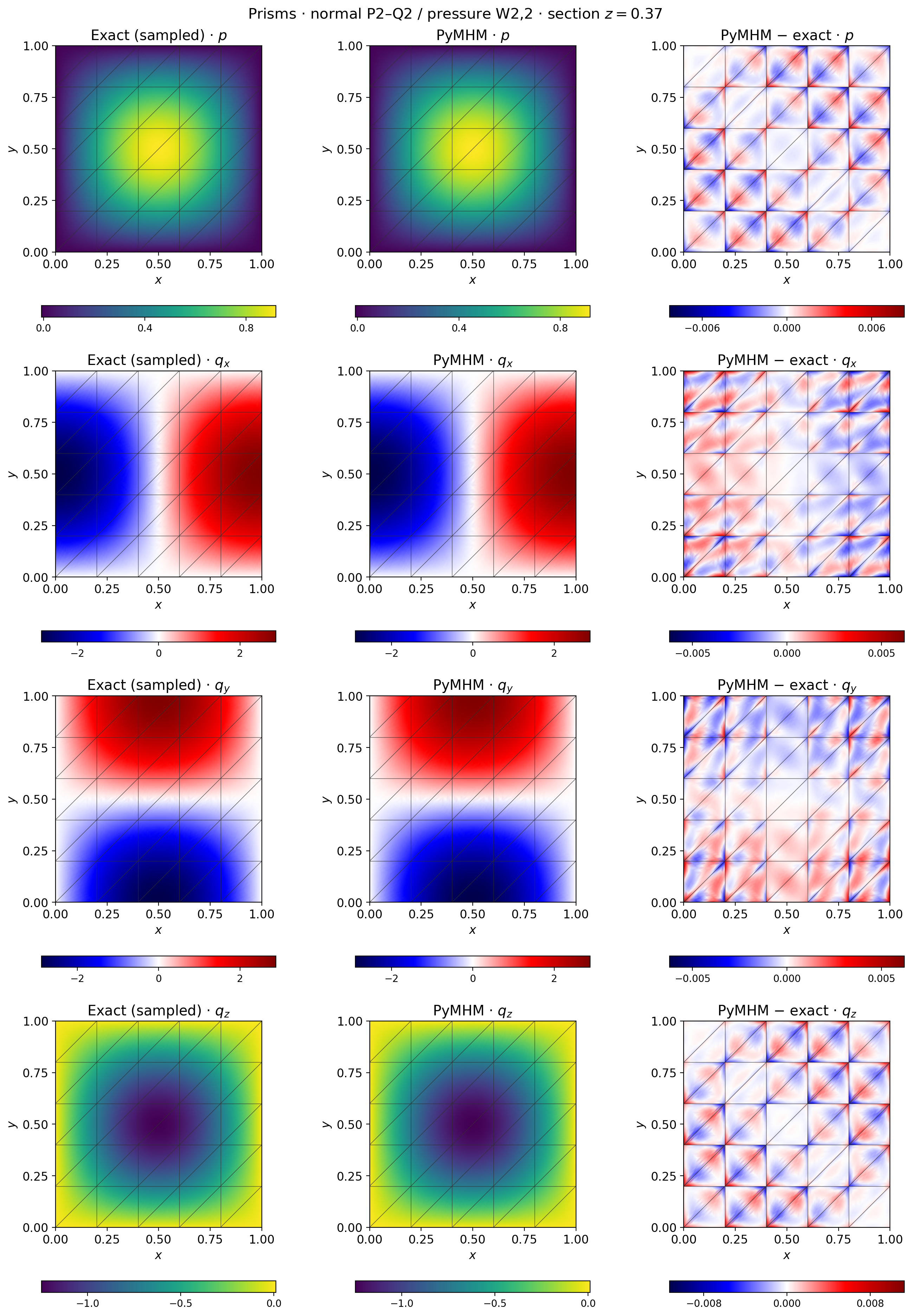

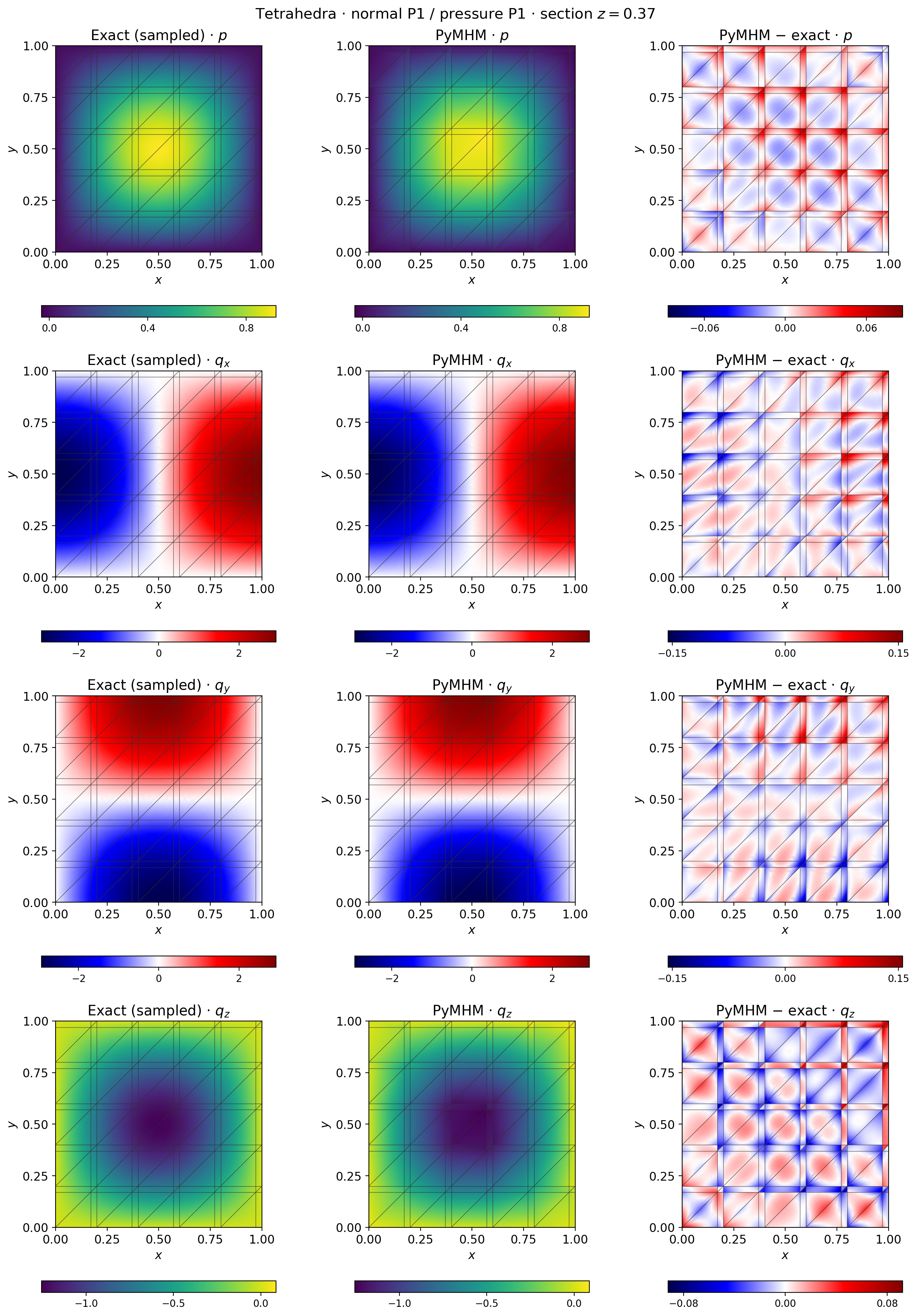

Horizontal sections are at \(z=0.37\). The full pressure and physical flux polynomials are evaluated on six subdivisions of each triangular fan of a fine-cell section. Exact and numerical fields use the same display vertices. Each fine cell owns its vertices, so display interpolation never averages independent traces across an interface. Dark lines show the original macro mesh intersections. Differences have separate symmetric scales. The volume norms are independently reintegrated from the archived coefficients and executed basis before the section fields are exported.

Verification and reproduction

Portable tests check normal duality, divergence range, orientation, polynomial patches and complete interior bubbles. Native Basix tests independently compare tetrahedral polynomial operators and prismatic tensor-product spaces, including pressure orders two and three. Persisted fields include the executed basis matrix alongside coefficients, so evaluation does not depend on a new nullspace orientation.

The whole 20-case comparison uses a dedicated reference driver built on FEniCS/Basix 0.9.0. Acquisition runs in 16 independent process groups, each with one native thread during its solves. It independently constructs the restricted parent flux spaces, pressure bases, quadrature, source and boundary terms, and solves the full uncondensed saddle system. It shares the linear-solver arithmetic with pymhm; both sets of fields are evaluated in their own executed bases. The maximum relative differences are \(7.052\times10^{-14}\) in pressure, \(4.620\times10^{-13}\) in physical flux and \(4.773\times10^{-13}\) in divergence. The native full-original residual is at most \(1.549\times10^{-12}\), against the declared \(10^{-10}\) criterion. Its interface multiplier represents pressure; comparison uses the physical fields, independently of the global normal-flux coordinates of pymhm.

The reference source audit identifies Basix revision 19555f5. The verification record separately identifies the executed Python modules and compiled Basix binary by digest. Literal field replay with one and two BLAS threads and coherent saved bubble-basis changes verify the persisted data contract. The comparison certifies these finite affine discretizations; uniform inf-sup estimates and general material coefficients require separate analysis and verification.

Four additional nonhomogeneous controls prescribe \(p=1+x-y+z\) on the complete exterior, with \(f=0\) and physical \(q=(-1,1,-1)\). Both the condensed and independent uncondensed formulations reproduce these fields. The largest pressure and flux errors of the condensed solve are \(1.4\times10^{-13}\) and \(9.0\times10^{-13}\), respectively; the independent reference also checks the zero physical divergence.

pixi run --locked -e notebooks python -m examples.solve_core_extensions hdiv3d
pixi run --locked -e notebooks python -m examples.sample_core_sections hdiv3d
pixi run --locked -e notebooks python -m examples.plot_core_extensions hdiv3d

The 20-case record is examples/results/core-extensions/hdiv3d.json, accompanied by field archives, source hashes and quadrature checks. The display replay and reintegrated volume norms are recorded separately in examples/results/core-extensions/hdiv3d-field-sampling.json. The independent whole-case evidence is available in the verification record.
