Mixed H(div) stress MHM
Follow the complete workflow: meshes → local equations → global equations → assemble → solve → physical fields and errors.
Executable notebook · Download notebook
The notebook prepares its verified companion workspace before these cells. ROOT denotes that writable workspace. Use the locked introduction Pixi environment with DOLFINx, UFL and Basix for the independent classical UFL control; see the installation guide. The multiscale equations themselves use the portable NumPy/SciPy backend. The local numerical algorithm remains in the package; this lesson defines the actual variational equations and physical data.
This notebook uses row-wise BDM stress, discontinuous displacement and weak rotation. You write the compliance, force balance, symmetry and normal-traction equations before assembling. Basix-based package kernels handle finite-element integration and Piola maps. The method follows Devloo et al. (2021), with the stable stress spaces of Arnold, Falk and Winther (2007).
from dataclasses import replace
import basix.ufl
import matplotlib.pyplot as plt
import numpy as np
import ufl
from scipy import sparse
from threadpoolctl import threadpool_limits
from pymhm import (
Equation,
FaceSpace,
MeshHierarchy,
MultiscaleProblem,
SkeletonSpace,
TriangleMesh,
assemble,
bind_interface,
bind_problem,
solve,
)
from pymhm.core.equations import compile_form
from pymhm.fem.hdiv.bdm_family import BDMFamily
from pymhm.fem.scalar.triangle import multiindices, nodal_space
from pymhm.fem.vector.stress import (
displacement_rigid_moments,
mixed_elasticity_operators,
rigid_values,
stress_trace_moments,
traction_mapping,
)
from pymhm.postprocessing.nodal import nodal_field
from pymhm.postprocessing.piola import hdiv_field
from pymhm.postprocessing.stress import MixedElasticitySolution
1. State physical fields and boundary data
On the unit square, choose a smooth solenoidal displacement:
Then \(p=-\lambda\nabla\cdot u=0\), \(\sigma=2\mu\varepsilon(u)\) and \(f=2\pi^2u\). The weak rotation convention is \(r=(\partial_yu_1-\partial_xu_2)/2\). The exact boundary displacement is nonzero on parts of the exterior; it must enter the global functional.
def smooth_fields(points):
"""Define independent solenoidal displacement, physical stress, force and weak rotation."""
x, y = np.pi * points.T
u = np.column_stack((np.sin(x) * np.cos(y), -np.cos(x) * np.sin(y)))
sigma = np.zeros((len(points), 2, 2))
sigma[:, 0, 0] = 2 * np.pi * np.cos(x) * np.cos(y)
sigma[:, 1, 1] = -sigma[:, 0, 0]
return u, sigma, 2 * np.pi**2 * u, -np.pi * np.sin(x) * np.sin(y)
def exact_u(points):
"""Return the nonhomogeneous prescribed displacement."""
return smooth_fields(points)[0]
def exact_ufl(domain):
"""State the same exact physical data for native classical assembly."""
x = ufl.SpatialCoordinate(domain)
ue = ufl.as_vector(
(
ufl.sin(np.pi * x[0]) * ufl.cos(np.pi * x[1]),
-ufl.cos(np.pi * x[0]) * ufl.sin(np.pi * x[1]),
)
)
return ue, ufl.as_ufl(0), 2 * np.pi**2 * ue
2. Declare compatible spaces and independent local meshes
Stress rows use BDM2; displacement and rotation use discontinuous \(P_1\). They contain all three two-dimensional rigid modes. BDM1/P0/P0 omits the rigid rotation and is inadmissible for this local MHM construction.
Interior macrofaces use vector \(P_1\) negative traction. Exterior faces retain full \(P_2\) moments on each fine boundary edge, as required to represent the prescribed normal-stress space in this comparison. The normal/interior degrees can be enriched independently through BDMFamily; its divergence and rotation degrees change with the selected interior family.
n, refinement = 8, 2
lam, mu = 1.0, 1.0
macro = TriangleMesh.unit_square(n)
boundary = set(macro.boundary_faces)
family = BDMFamily(2, 0)
skeleton = SkeletonSpace(
macro,
tuple(
FaceSpace.uniform(2, refinement) if f in boundary else FaceSpace.uniform(1)
for f in range(len(macro.faces))
),
2,
)
hierarchy = MeshHierarchy(
macro, tuple(macro.submesh(i, refinement) for i in range(len(macro.cells)))
)
interface = bind_interface(skeleton, convention="normal")
def source(points):
"""Return the independently derived physical body force."""
return smooth_fields(points)[2]
def displacement(points):
"""Return the physical displacement including nonzero exterior values."""
return smooth_fields(points)[0]
3. Identify each mathematical block of the local operator
For \(\operatorname{asym}\tau=\tau_{12}-\tau_{21}\), the mixed forms are
Here \(\widehat u\) is an auxiliary local boundary displacement and \(\lambda_H=-\sigma n\) is the global negative traction. The compliance in two dimensions is
mixed_elasticity_operators integrates precisely the compliance mass mass, row divergence divergence, weak symmetry asymmetry and volume force force. The following UFL expression is the same three volume equations; the actual portable solve below uses the shared kernels.
def mixed_volume_form(space):
"""State the independent row-wise stress/displacement/rotation UFL volume form."""
row0, row1, u, r = ufl.TrialFunctions(space)
test0, test1, v, s = ufl.TestFunctions(space)
sigma = ufl.as_matrix(((row0[0], row0[1]), (row1[0], row1[1])))
tau = ufl.as_matrix(((test0[0], test0[1]), (test1[0], test1[1])))
compliance = (sigma - lam / (2 * (mu + lam)) * ufl.tr(sigma) * ufl.Identity(2)) / (2 * mu)
dx = ufl.Measure("dx", domain=space.mesh, metadata={"quadrature_degree": 10})
_, _, f = exact_ufl(space.mesh)
a = (
ufl.inner(compliance, tau)
+ ufl.inner(u, ufl.div(tau))
+ ufl.inner(ufl.div(sigma), v)
+ r * (tau[0, 1] - tau[1, 0])
+ s * (sigma[0, 1] - sigma[1, 0])
) * dx
return Equation(a, -ufl.inner(f, v) * dx)
from pymhm.backends.spaces import bind_space
native_volume = bind_space(
hierarchy.local_mesh(0),
basix.ufl.mixed_element(
[
basix.ufl.element("BDM", "triangle", 2),
basix.ufl.element("BDM", "triangle", 2),
basix.ufl.element(
"DG", "triangle", 1, shape=(2,), lagrange_variant=basix.LagrangeVariant.equispaced
),
basix.ufl.element(
"DG", "triangle", 1, lagrange_variant=basix.LagrangeVariant.equispaced
),
]
),
)
try:
native_equation = mixed_volume_form(native_volume.space)
native_matrix = compile_form(native_equation.a)
native_load = compile_form(native_equation.L)
print("Independent UFL volume blocks:", native_matrix.shape, native_load.shape)
finally:
native_volume.close()
4. Include local boundary displacement and rigid moments
With \(S\) extracting the stress normal moments and \(N\) mapping skeletal traction into the fine normal basis, the four local blocks are
The boundary selector records the declared BDM normal-moment ordering; traction_mapping owns geometric orientation and trace partitions. Its blocks already use global coordinates, so coordinates="global" prevents applying incidence signs twice.
The kernel comprises translations and the coupled rigid displacement/rotation/boundary trace. Declared displacement integrals fix their physical coordinates. The linear boundary rigid trace has a constant and first Legendre coefficient; higher coefficients vanish. These are definitions of the physical modes, not a numerical nullspace search.
def local_equations(local):
"""Declare mixed volume/normal-traction equations and moment-fixed physical rigid modes."""
fine = local.mesh
mass, divergence, asymmetry, force = mixed_elasticity_operators(
fine, lam, mu, source, 10, family
)
ns, nu, nr = mass.shape[0], divergence.shape[0], asymmetry.shape[0]
normal_size = 2 * (family.degree + 1)
nb = normal_size * len(fine.boundary_faces)
normal_rows = (normal_size * fine.boundary_faces[:, None] + np.arange(normal_size)).ravel()
S = sparse.coo_matrix((np.ones(nb), (normal_rows, np.arange(nb))), shape=(ns, nb)).tocsc()
A = sparse.bmat(
[
[mass, divergence.T, asymmetry.T, -S],
[divergence, None, None, None],
[asymmetry, None, None, None],
[-S.T, None, None, None],
],
format="csc",
)
L = np.r_[np.zeros(ns), -force, np.zeros(nr + nb)]
N = traction_mapping(macro, local.cell, fine, skeleton, family)
B = np.zeros((len(L), N.shape[1]))
B[-nb:] = -N
center = macro.points[macro.cells[local.cell]].mean(axis=0)
nodes = np.einsum("qi,tij->tqj", multiindices(1), fine.points[fine.cells])
Z = np.zeros((len(L), 3))
Z[ns : ns + nu] = rigid_values(nodes, center).reshape(-1, 3)
Z[ns + nu : ns + nu + nr, 2] = -1
rigid_edges = rigid_values(fine.points[fine.faces[fine.boundary_faces]], center)
edge_coefficients = np.zeros((len(rigid_edges), family.degree + 1, 2, 3))
edge_coefficients[:, 0] = rigid_edges.mean(axis=1)
edge_coefficients[:, 1] = (rigid_edges[:, 1] - rigid_edges[:, 0]) / 2
Z[ns + nu + nr :] = edge_coefficients.reshape(-1, 3)
M = np.zeros_like(Z)
M[ns : ns + nu] = displacement_rigid_moments(fine, center, family)
plain, weighted, scale = stress_trace_moments(fine, ns, lam, mu, 10, family)
pressure_weights = np.r_[weighted / scale, np.zeros(nu + nr + nb)]
selector = sparse.eye(len(L), format="csr")
fields = (
hdiv_field("stress", fine, family, components=2, reconstruction=selector[:ns]),
nodal_field(
"displacement",
fine,
1,
components=2,
discontinuous=True,
reconstruction=selector[ns : ns + nu],
),
nodal_field(
"rotation", fine, 1, discontinuous=True, reconstruction=selector[ns + nu : ns + nu + nr]
),
)
equations = local.equations(
a=A,
L=L,
b=B,
c=-B.T,
kernel=Z,
moments=M,
coordinates="global",
metadata=(pressure_weights, ns, nu, nr),
)
return replace(equations, field_data=fields)
5. Declare the global boundary equation, assemble and solve
The global equation enforces continuity of the weak boundary displacement and the prescribed exterior moments. The sign follows the mixed local equations above; it differs from a primal convention because the boundary auxiliary appears with \(-S\).
Finite \(\lambda\) also implies
The normalized weighted-stress row below states this identity. At incompressibility the trace integral becomes a pressure gauge; pure traction instead needs displacement rigid gauges. MixedElasticitySolution only interprets the executed blocks and supplies physical diagnostics.
def global_equation(context):
"""Enforce assembled boundary displacement moments with the mixed-method sign."""
boundary, _ = context.boundary_data(displacement, order=10)
return Equation(0, context.trace_load(boundary))
with threadpool_limits(1):
problem = bind_problem(
hierarchy, interface, local_equations, global_equation=global_equation, retained=3
)
system = assemble(problem)
# The chosen solenoidal data have zero integrated normal boundary displacement.
constraints = [system.mean_constraint([m[0] for m in system.local_metadata], 0.0)]
coefficients = solve(system, constraints=constraints)
sf, uf, rf = (coefficients.field(name) for name in ("stress", "displacement", "rotation"))
view = MixedElasticitySolution(
skeleton,
tuple(f.mesh for f in uf),
tuple(f.coefficients.reshape(-1, 2) for f in sf),
tuple(f.coefficients.reshape(len(f.mesh.cells), 3, 2) for f in uf),
tuple(f.coefficients.reshape(len(f.mesh.cells), 3) for f in rf),
coefficients,
source,
10,
family,
)
6. Check physical errors, fine force balance and weak symmetry
Do not symmetrize the computed stress before measuring its error. Symmetry is enforced in the rotation test space; its pointwise skew part may be nonzero. Fine-cell force moments, skeletal normal traction and full original equations are checked independently.
from examples.core_elasticity_field_archive import ProductionObservation
from examples.minimal_flow_originals import original_diagnostics
errors = {
"displacement_l2": view.l2_error(displacement, 12),
"stress_l2": view.stress_l2_error(lambda x: smooth_fields(x)[1], 12),
"rotation_l2": view.rotation_l2_error(lambda x: smooth_fields(x)[3], 12),
"stress_divergence_l2": view.divergence_l2_error(lambda x: -source(x), 12),
}
invariants = {
"fine_force": max(float(np.max(abs(r))) for r in view.fine_force_residuals()),
"weak_symmetry": max(float(np.max(abs(r))) for r in view.weak_symmetry_residuals()),
"normal_traction": max(float(np.max(abs(r))) for r in view.normal_traction_residuals()),
}
print(errors)
print(invariants)
assert max(invariants.values()) < 1e-10
observation = ProductionObservation(
system=system,
applied_boundary=-system.global_load[: system.trace_size],
constraints=constraints,
)
blocks = [
{
"stress_constitutive": ns,
"force_balance": nu,
"weak_symmetry": nr,
"normal_traction_compatibility": len(field) - ns - nu - nr,
}
for field, (_, ns, nu, nr) in zip(coefficients.fields, system.local_metadata, strict=True)
]
physical = original_diagnostics(view, observation, blocks)
print("Original physical residual:", physical["full_uncondensed_relative_to_physical_rhs"])
assert physical["accepted"]

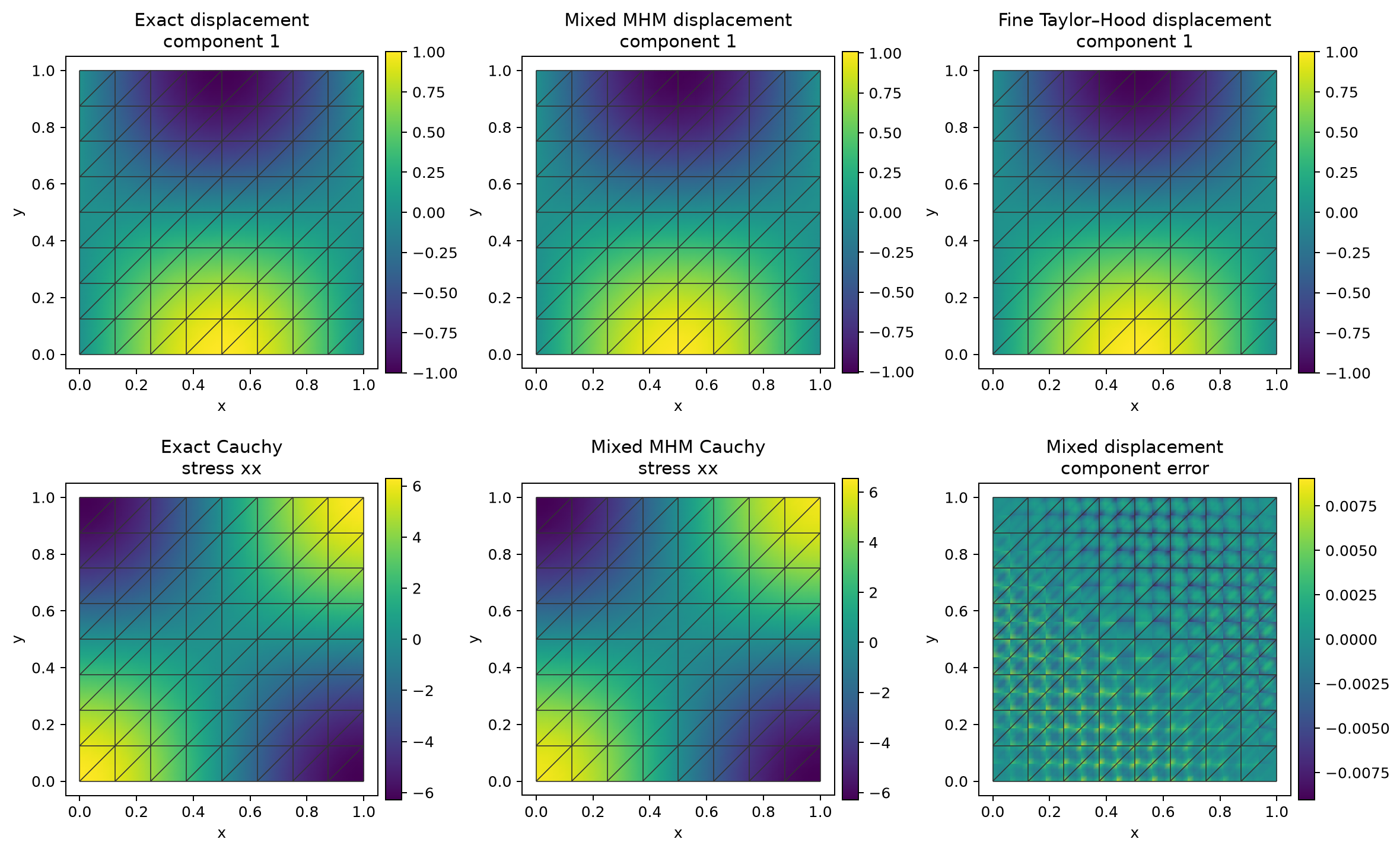

7. Build and refine the independent classical baseline
The classical Taylor–Hood displacement–pressure system uses the same material, force and nonhomogeneous boundary values on global \(32\times32\) and \(64\times64\) meshes. These meshes are independent of the coarse \(8\times8\) macro partition. Analytical errors qualify the refined baseline before its field is plotted.
from dolfinx import fem
from pymhm.backends.spaces import bind_space, coefficient_map
from pymhm.postprocessing.fields import DiscreteField, FieldDefinition
def conforming_reference(resolution):
"""Solve the notebook's unstabilized Taylor–Hood form on a fine global mesh."""
mesh = TriangleMesh.unit_square(resolution)
element = basix.ufl.mixed_element(
[
basix.ufl.element(
"Lagrange",
"triangle",
2,
shape=(2,),
lagrange_variant=basix.LagrangeVariant.equispaced,
),
basix.ufl.element(
"Lagrange", "triangle", 1, lagrange_variant=basix.LagrangeVariant.equispaced
),
]
)
native = bind_space(mesh, element)
try:
u, p = ufl.TrialFunctions(native.space)
v, q = ufl.TestFunctions(native.space)
domain = native.space.mesh
ue, pe, force = exact_ufl(domain)
dx = ufl.Measure("dx", domain=domain, metadata={"quadrature_degree": 12})
a = (
2 * mu * ufl.inner(ufl.sym(ufl.grad(u)), ufl.sym(ufl.grad(v)))
- p * ufl.div(v)
- q * ufl.div(u)
- p * q / lam
) * dx
L = ufl.inner(force, v) * dx
_, nodes = nodal_space(mesh, 2)
boundary_nodes = np.flatnonzero(np.any(np.isclose(nodes, 0) | np.isclose(nodes, 1), axis=1))
portable = (2 * boundary_nodes[:, None] + np.arange(2)).ravel()
native_ids = coefficient_map(native, component=0)[portable]
fixed = dict(zip(native_ids, exact_u(nodes[boundary_nodes]).ravel(), strict=True))
reference_problem = MultiscaleProblem.from_global(
Equation(a, L),
native.size,
fixed=fixed,
)
# Finite lambda determines this zero integral by the displacement data.
pressure_integral = compile_form(q * dx)
result = solve(assemble(reference_problem), constraints=[(pressure_integral, 0.0)])
numerical = fem.Function(native.space)
numerical.x.array[:] = result.trace
uh, ph = ufl.split(numerical)
sigma_h = 2 * mu * ufl.sym(ufl.grad(uh)) - ph * ufl.Identity(2)
sigma_e = 2 * mu * ufl.sym(ufl.grad(ue)) - pe * ufl.Identity(2)
differences = {
"displacement_l2": uh - ue,
"pressure_l2": ph - pe,
"stress_l2": sigma_h - sigma_e,
}
errors = {
name: float(np.sqrt(fem.assemble_scalar(fem.form(ufl.inner(delta, delta) * dx))))
for name, delta in differences.items()
}
fields = {
name: DiscreteField(
FieldDefinition(name, descriptor=native.descriptor(component=i)), result.trace
)
for i, name in enumerate(("displacement", "pressure"))
}
return fields, {
"resolution": resolution,
"triangles": len(mesh.cells),
"unknowns": native.size,
"errors": errors,
"residual": result.residual,
}
finally:
native.close()
with threadpool_limits(1):
reference32, control32 = conforming_reference(32)
reference64, control64 = conforming_reference(64)
print(control32)
print(control64)
assert all(
control64["errors"][name] < control32["errors"][name]
for name in ("displacement_l2", "stress_l2")
)
The independently refined classical control gives the following analytical errors:
| Global squares per axis | Displacement L2 | Physical stress L2 |
|---|---|---|
| 32 | \(1.2181\times10^{-5}\) | \(5.2267\times10^{-3}\) |
| 64 | \(1.5213\times10^{-6}\) | \(1.3077\times10^{-3}\) |
8. Plot stress and displacement with the actual macro mesh
Independent fine-cell samples preserve the two traces at reconstructed interfaces; the display helper never averages them.
from IPython.display import SVG, display
from examples.introduction.vector import plot_field_panels
from examples.plot_mixed_elasticity import spatial_arrays
triangulation, x, numerical = spatial_arrays(view)
triangles = triangulation.triangles
ue, se, _, re = smooth_fields(x)
baseline = reference64["displacement"].evaluate(x)
panels = {
"Exact displacement\ncomponent 1": (x, triangles, ue[:, 0]),
"Mixed MHM displacement\ncomponent 1": (x, triangles, numerical[:, 0]),
"Fine Taylor–Hood displacement\ncomponent 1": (x, triangles, baseline[:, 0]),
"Exact Cauchy\nstress xx": (x, triangles, se[:, 0, 0]),
"Mixed MHM Cauchy\nstress xx": (x, triangles, numerical[:, 1]),
}
# Numerical x component and weak rotation are sampled independently in each fine cell.
panels["Mixed displacement\ncomponent error"] = (x, triangles, numerical[:, 0] - ue[:, 0])
figure = plot_field_panels(macro, panels, figsize=(13, 8))
output = ROOT / "build" / "tutorial-method-workflows"
output.mkdir(parents=True, exist_ok=True)
figure.savefig(output / "mixed_stress-elasticity-fields.png", dpi=180, bbox_inches="tight")
figure.savefig(output / "mixed_stress-elasticity-fields.svg", bbox_inches="tight")
display(SVG(filename=str(output / "mixed_stress-elasticity-fields.svg")))
plt.show()
9. Reach the smooth asymptotic regime
The archived refinement series uses this same smooth field, BDM2/DG-P1/DG-P1 local spaces, refinement two, interior vector \(P_1\) tractions and full exterior fine-edge \(P_2\) tractions. It increases the macro resolution through \(1,2,4,8,16,32\). The current explicit equations above run its \(n=8\) level; reading the remaining attributed records is not another solve.
import json
from io import StringIO
from IPython.display import SVG, display
from examples.introduction.vector import observed_rates
from examples.tutorial_convergence import plot_method_series
record = json.loads((ROOT / "examples/results/tutorial-methods/mixed-elasticity-asymptotic.json").read_text())
rows = record["rows"]
sizes = np.asarray([1 / row["macro_resolution"] for row in rows])
errors = {
label: np.array([row[key] for row in rows])
for label, key in {
"displacement L2": "displacement_l2",
"stress L2": "stress_l2",
"rotation L2": "rotation_l2",
}.items()
}
series = dict(
method="mixed-elasticity",
sizes=sizes.tolist(),
errors={k: v.tolist() for k, v in errors.items()},
rates={k: observed_rates(sizes, v).tolist() for k, v in errors.items()},
expected={"stress L2": 2.0, "rotation L2": 2.0},
spaces="BDM2 stress / DG P1 displacement and rotation; interior P1, full boundary P2 traces",
rate_provenance=(
'Devloo et al. (2021), theorem 5.2, equation (5.5): conditional smooth '
'two-dimensional compatible mixed estimate; stress and weak rotation target '
'order two; displacement measured separately'
),
refinement="macro grid spacing",
)
print("Final measured orders:", {k: v[-1] for k, v in series["rates"].items()})
figure = plot_method_series(series)
svg_buffer = StringIO()
figure.savefig(svg_buffer, format="svg")
display(SVG(svg_buffer.getvalue()))
plt.show()
The final consecutive intervals confirm the stated smooth regime. A measured order for an observable without a separate stated reference is reported as observed.
| Physical observable | Reference order | Last three orders | Maximum/minimum of \(E/H^q\) |
|---|---|---|---|
| displacement \(L^2\) | observed | 2.2899, 2.1055, 2.0298 | — |
| stress \(L^2\) | 2 | 1.9128, 1.9631, 1.9843 | 1.1018 |
| rotation \(L^2\) | 2 | 1.9310, 1.9843, 1.9970 | 1.0627 |
The final four levels are \(n=4,8,16,32\). The stress and weak-rotation target amplitudes flatten together. Displacement is an additional observable and has its own measured orders. All coarse levels remain visible in the figure. The composite record identifies the exact source record and SHA-256 for every row. An independent \(n=16\) control reproduces the archived stress, displacement, rotation and stress-divergence norms to relative differences below \(1.5\times10^{-13}\); the \(n=32\) extension also verifies original uncondensed rows, fine-cell force balance, weak symmetry and normal-traction continuity.
The compatible smooth mixed stress/rotation estimates give order two; displacement is measured separately. The local weak-symmetry estimate and two-level extension assume the stated stable BDM2/P1/P1 family, smooth physical fields, adequate exterior traction resolution and complete rigid moments. See Devloo et al. (2021) and Arnold, Falk and Winther (2007). The table is an analytical qualification on these declared spaces, rather than a digitized or reformulated reproduction of a heterogeneous paper table. Rough coefficients, singular domains, different trace partitions or incomplete rigid spaces require their own regularity and stability assessment.
The common convergence notebook preserves each sequence’s spaces, independent refinement variable and attributed numerical record.
