Nonconvex star-shaped polyhedral RAD

PolyhedralMesh accepts nonconvex cells whose closed, connected boundary is star-shaped with respect to a certified interior ball. The original planar polygonal faces remain the skeletal entities, including concave faces. The local tetrahedra partition the physical cell: reentrant notches are preserved.

This is the geometric class in §4.1(iii) of Araya et al. (2024). The campaign uses their smooth three-dimensional PDE and \(P_4/P_1\) degrees on an original nonconvex mesh family. It does not identify these meshes with the article's historical realization.

Geometry and local spaces

Each face is a simple planar polygon with cyclic vertex order. Boundary-edge incidence determines consistent outward orientation. The kernel calculation maximizes the radius of an interior ball constrained by every oriented face plane; the returned point is checked against those planes. Cones from this point to a conforming face triangulation give positive tetrahedra. A complete separating-axis test rejects overlapping cone interiors. Face ordering and cyclic reversal do not change the physical fields.

Empty kernels, disconnected cavity shells, open boundaries and nonorientable surfaces are rejected. Acceptance of one cell is not a claim of uniform regularity for an arbitrary sequence of cells: the ratio of kernel radius to cell diameter must remain bounded below for the cited geometric hypothesis. Convex cells retain their established geometry and local ordering.

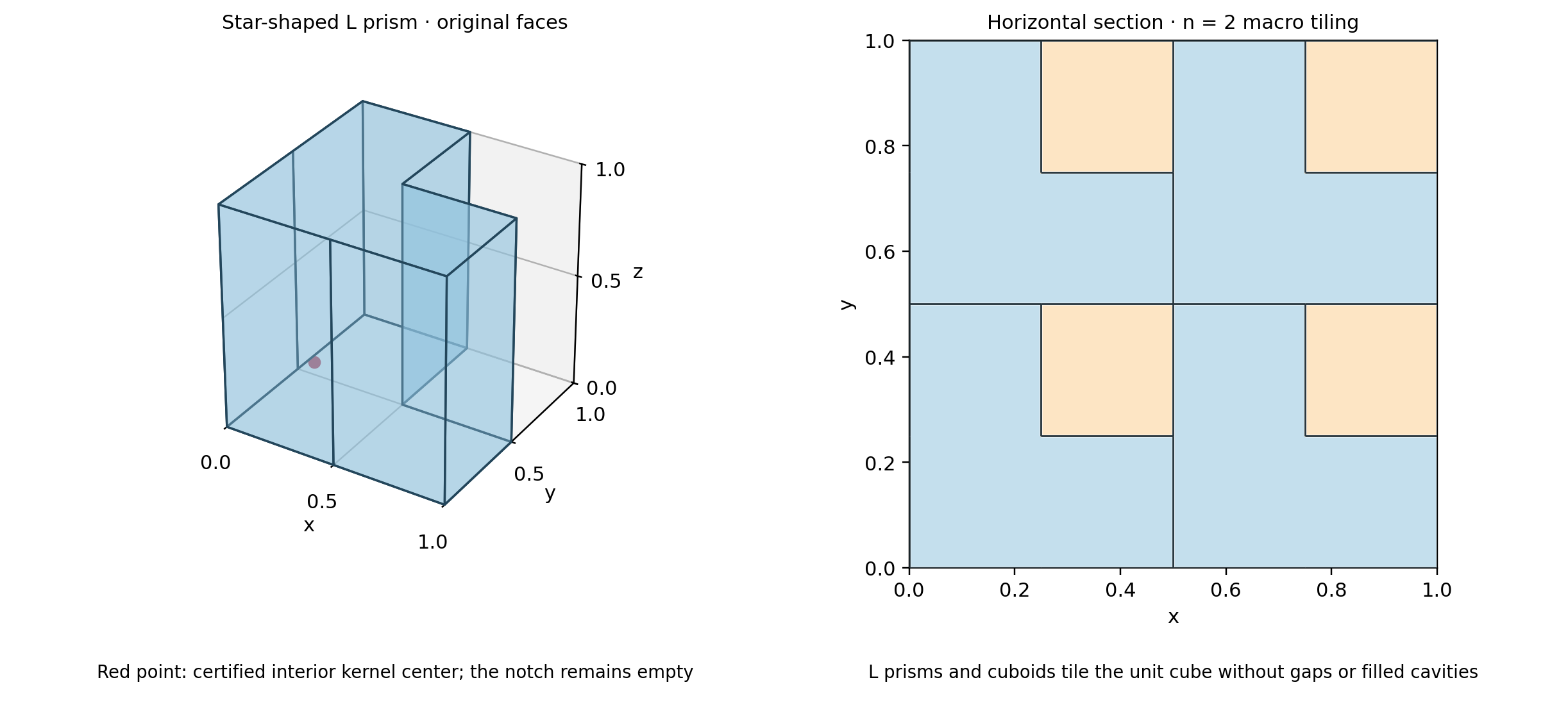

The unit cube is tiled by L prisms and cuboids. For resolution \(n\), there are \(2n^3\) macrocells, half nonconvex. Each layer repeats a conforming L/square partition. The minimum kernel-radius/diameter ratio is \(1/(4\sqrt{3})\approx0.144338\) throughout this family.

Local potentials are continuous \(P_4\) on the cone tetrahedra. Each original macroface has one complete affine polynomial, with three coefficients even when that face is concave or has more than three vertices. The triangulation introduces integration and local-mesh entities, not additional global traces. This \(k=4\), \(\ell=1\) choice satisfies the three-dimensional degree condition \(k\ge\ell+3\) in Assumption A2 of the cited paper. Its energy estimate also requires the stated facet-matching, shape-regular local partitions and uniform geometric conditions; a positive kernel ball alone does not supply all of them.

Analytical problem and norms

The conservative operator, exact solution and load are

\[ \begin{aligned} -\nabla\cdot(0.1\nabla u)+\nabla\cdot(\beta u)&=f, &\beta&=(1,0,0),\\ u&=\sin(6\pi x)\sin(4\pi y)\sin(2\pi z),\\ f&=5.6\pi^2u+\partial_xu. \end{aligned} \]

All exterior Dirichlet values are zero. The multiplier is the Robin quantity \((-0.1\nabla u+\beta u/2)\cdot n\); the physical flux shown in the maps is \(q=-0.1\nabla u+\beta u\). Their distinction is retained in the diagnostics. The reported \(V\) norm is

\[ \|e\|_V^2=\|\nabla e\|_{L^2(\Omega)}^2+ \frac{1}{3}\|e\|_{L^2(\Omega)}^2, \]

because the squared diameter of the cube is three. All norms use physical volume quadrature. Positive Duffy rules are increased on coarse cells to resolve the oscillatory analytical source, and each error is recomputed at a higher quadrature order. Exact geometry, algebraic residual and quadrature agreement are distinct checks from the approximation errors.

Numerical results

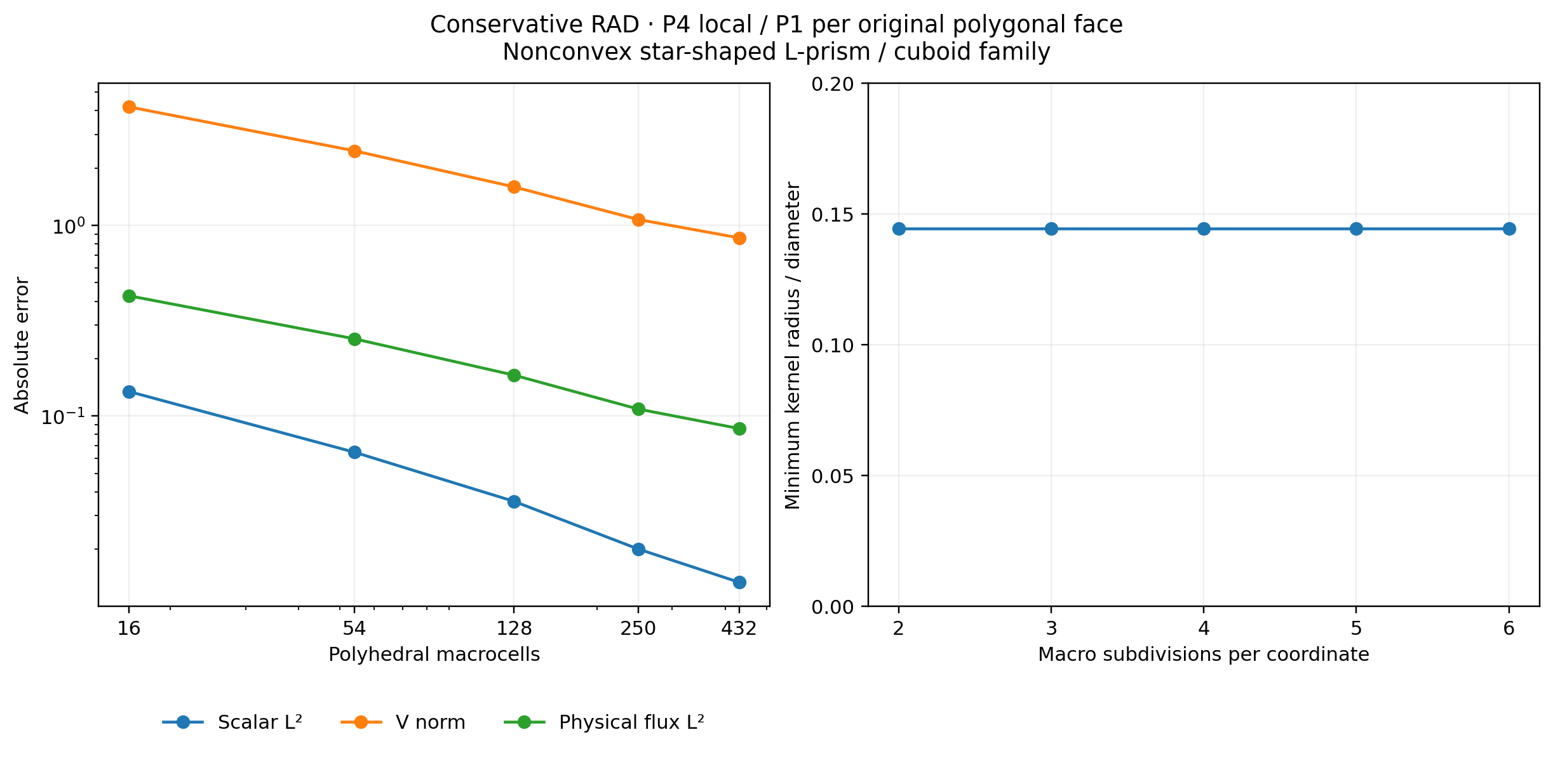

The five resolutions retain the same local and skeletal degrees. Errors are absolute physical norms, with the higher of the two recorded integration orders. The source and geometric hypotheses are identical at every level.

Macrocells	Trace coefficients	\(\|u-u_h\|_{L^2}\)	\(\|u-u_h\|_V\)	\(\|q-q_h\|_{L^2}\)
16	264	0.13424938	4.18300328	0.42701004
54	810	0.06456435	2.46169235	0.25405799
128	1824	0.03563548	1.59155957	0.16372333
250	3450	0.02005473	1.07381084	0.10876389
432	5832	0.01340481	0.85968920	0.08589671

All three errors decrease over this sequence. The finest scalar error is about 3.79% of the exact scalar norm \(1/\sqrt{8}\). These observations characterize this mesh family; they do not establish an asymptotic rate for arbitrary star-shaped cells. The largest change under increased error quadrature is below \(3\times10^{-14}\), and all global relative residuals are below \(2\times10^{-15}\).

The geometry and convergence figures above use the retained geometric certificates and physical norm records. The original finest local coefficient archive is not available in the published dataset; these records do not determine a spatial field. Full scalar and flux sections require acquiring the original \(P_4\) problem with the commands below. The physical flux includes both diffusive and advective terms.

Independent verification

Portable tests check volumes, areas, affine Gauss identities, positive kernel balls, local conformity and geometric rejection contracts. A two-cell L-prism patch checks affine and quadratic anisotropic diffusion with Dirichlet, mixed and Neumann data. Additional tests cover conservative RAD, variable coefficients, physical means, nonaffine field invariance under reordered faces and preserved convex-mesh replay. Native VTU exchange preserves concave faces, kernel radii, physical volumes and material tags.

A native DOLFINx/UFL test assembles the complete uncondensed saddle system on two reentrant macrocells independently. It uses local \(P_3\), one \(P_1\) trace per original face, polynomial forcing and inhomogeneous boundary data. The local polynomial maps, physical face integration and full-system solution are compared with PyMHM. This is an operator and discrete-solution check, not a separate convergence theorem for every nonconvex geometry.

Reproduction

pixi run --locked -e notebooks python -m examples.solve_star_polyhedra --workers 4
pixi run --locked -e notebooks python -m examples.plot_star_polyhedra

The acquisition writes source snapshots, geometry certificates, complete local coefficients and SHA256 digests. With those coefficient archives available, the plotter evaluates spatial sections without solving another PDE. Slice values belong to independent fine tetrahedra; actual macro boundaries are overlaid without averaging interface values. Notebook 67 checks the retained records and requires these additional archives for its spatial sections.

References

• Rodolfo Araya, Fabrice Jaillet, Diego Paredes, and Frédéric Valentin (2024). Generalizing the multiscale hybrid-mixed method for reactive-advective-diffusive equations, Computer Methods in Applied Mechanics and Engineering 428, 117089. DOI: 10.1016/j.cma.2024.117089.
